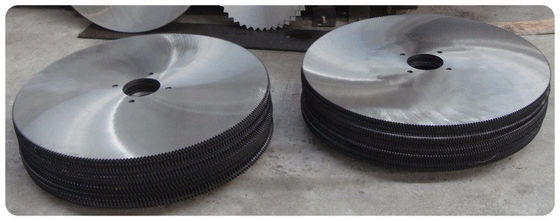

round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24

round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24

    • round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24
    • round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24
    • round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24
    • round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24
  • round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24

    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR0198-001
    Name: Steel Body
    Tooth pitch: Laser cut or punched
    Teeth: Sharpened
    Color: Natural
    Function: for making TCT saw blade
    Teeth Type: as appointed
    Surface treatment: Oiled or painted
    Body material: 65Mn
    Thickness: 2.0mm
    Diameter: 198mm
    Teeth number: 24T
    Contact Now
    Detailed Product Description

    round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24



    For producing TCT saw blade for diameter 200mm.

    round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24



    Quality: for indutrial and professional market



    Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.



    Size and specifications:Remark:  Other special izes and specification can be tailor-made for our clients.



    TCT Blade Steel Core Blank Steel core blank thickness (mm)
    Diameter mm Diameter mm
    200 198 1.4 1.6 1.8 2 2.2
    230 228 1.6 1.8 2 2.2
    250 248 1.6 1.8 2 2.2
    255 253 1.6 1.8 2 2.2
    300 298 1.6 1.8 2 2.2 2.5
    305 303 1.6 1.8 2 2.2 2.5
    315 313 1.6 1.8 2 2.2 2.5
    350 348 1.8 2 2.2 2.5 2.8
    400 398 2 2.2 2.5 2.8 3
    420 418 2.2 2.5 2.8 3 3.2
    450 448 2.2 2.5 2.8 3 3.2
    455 453 2.2 2.5 2.8 3 3.2
    500 498 2.5 2.8 3 3.2 3.5
    550 548 2.5 2.8 3 3.2 3.5
    600 598 2.8 3 3.2 3.5 3.8
    650 648 3 3.2 3.5 3.8 4
    700 698 3 3.2 3.5 3.8 4
    750 748 3.2 3.5 3.8 4 4.2
    800 798 3.5 3.8 4 4.2 4.5
    850 848 3.5 3.8 4 4.2 4.5
    900 898 3.8 4 4.2 4.5 5
    1000 998 4 4.5 5 5.5 6
    1100 1098 4.5 5 5.5 6 6.5
    1200 1198 5.5 6 6.5 7 8



    round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24



    round steel blanks Round Steel Body for TCT Circular Saw Blades Size 198mm x 2.0mm x 30mm Z=24

    Diamond Core Blanks

    MBS produces 24 to 100 inch blanks for diamond core applications. Blanks are laser cut to customer specification. The outside diameters of these diamond core blanks are concentric to the inside diameter. This means that the outside and inside diameters must be precisionally made to exact measurements. Like our friction and hot saw blades, all diamond core blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Diamond core blanks are often used to cut marble slabs, granite, stone or other masonary type products

    Segmented Blanks

    MBS makes 24 to 60 inch segmented blanks. Blanks are laser cut to customer’s specification. Like our friction and hot saw blades, all segmented blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Segmented blanks are often used to cut wood, aluminum, and other nonferrous materials.

    Custom Blanks

    MBS will work with your purchasing department or engineers to develop saw blades to custom fit your demanding applications. Disston 100 year history of making saw blades allows us to custom build a precision saw blade to meet your needs
