    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: MBS014-630-001
    Name: Metal Cutting TCT Saw Blades for steel block
    Carbide material: YG8
    Welding: Auto-machine weld
    Tooth pitch: Laser cut
    Surface treatment: Oiled or painted
    Color: Natural
    Function: For cutting steel igot
    Size: 630mm
    Plate thickness: 5.0mm
    Kerf: 6.5mm
    Teeth number: 80T
    Body material: 65Mn

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Packaging Details: pallet, wood box
    Contact Now
    Detailed Product Description

    Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80

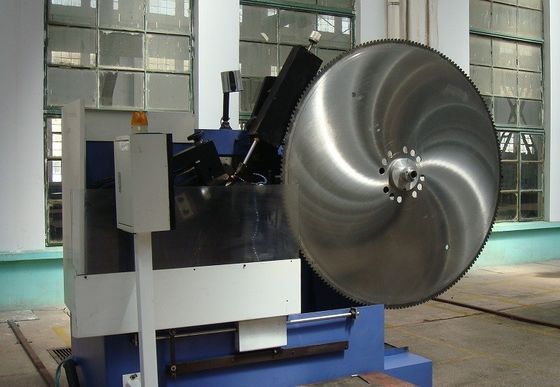

    This type of TCT Circular Saw Blades are specially designed as steel ingot cutting blades. The blades are applied in steel plant, seamless steel pipe plant, wheel hub plant and other heavy machinery factory to cut steel ingot, big diameter steel bar, steel rails and other big size steel profiled bars. The blades also can be used to cut cast iron and non-ferrous metals like aluminium, cooper, brass etc…

    Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80

    Quality: for indutrial and professional market

    Bore: all sizes and upon request, including 60mm, 80mm, 100mm, 150mm, etc

    Diameter: 630mm

    Kerf: 6.5mm

    Plate thickness: 5.0mm

    Teeth number: 80

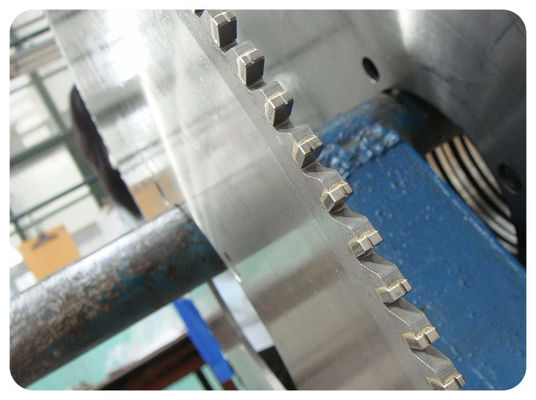

    Teeth type:

    Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80

    Other sizes and specifications:

    Diameter (mm) Kerf (mm) Body Thickness (mm) Teeth number
    450 6 4.5 52
    540 6.5 5.0 60/80
    630 6.5 5.0 60/80
    660 6.5 5.0 70/80
    710 7 5.5 60/70/80
    760 7 5.5 60/70/80
    830 7 5.5 70/100
    965 8 6.5 50/60/90
    1010 8 6.5 60/80
    1080 8 6.5 60/80
    1140 8 6.5 48/50/60/70/72
    1180 8 6.5 54/60/70/80
    1250 8.5 7.0 50/54/80
    1320 8.5 7.0 50/60/80
    1500 9.5 8.0 50/80
    1800 10.5 9.0 60/90



    Remark:  Other special izes and specification can be tailor-made for our clients.

    Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80



    Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80

    Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80Metal Cutting TCT Saw Blades for steel block item 630mm x 6.5/5.0 T=80

    There are four basic blade types, determined by the shape, or grind, of their teeth. They are flat top grind (FTG), alternate top bevel (ATB), combination (ATBR), and triple-chip grind (TCG) [Figure 1 and Photo A].

    FTG blades have teeth whose top edges are square to the saw plate. Also called rakers, these teeth attack the wood much like a chisel chopping out the ends of a mortise. They’re fast cutting and durable, but don’t produce a clean surface. They’re designed to rip, sawing perpendicular to the grain.

    The teeth on ATB blades are angled across the top edge, with every other tooth “leaning” in the opposite direction. The shape of the tooth causes it to shear the wood fibers cleanly using a slicing motion. The steeper the bevel angle, the cleaner the teeth cut, but the quicker they dull (Figure 2). Most 40-tooth ATB blades are marketed as “all-purpose” blades.

    Combination blades consist of 50 teeth arranged in sets of five, with four ATB teeth followed by a raker tooth (thus the ATBR designation.) The ATB teeth are designed to crosscut cleanly while the raker teeth aid in ripping. Combination blades are also considered “all-purpose” blades.

    The teeth on a TCG blade alternate between a raker tooth and a chamfered tooth. The chamfered tooth roughs out the cut, while the following FTG tooth cleans it up. This tooth configuration is meant for sawing dense materials: plastic laminate, solid surface materials like Corian, and non-ferrous metals like brass and aluminum. Pointy ATB teeth would blunt quickly from this stuff.
