    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR0222-3
    Name: Steel Blank
    Tooth pitch: Laser cut or punched
    Teeth: Sharpened
    Color: Natural
    Function: for making diamond saw blade
    Slot type: key, U shape
    Surface treatment: Oiled or painted
    Body material: 65Mn
    Thickness: 1.6mm - 7.0mm
    Diameter: 230mm - 1200mm
    Teeth number: upon request
    Contact Now
    Detailed Product Description

    Steel Blank | Circular Saw Blades | Sawing & Blades Power Tool Accessoriess | diameter from 230mm up to 1200mm



    For producing diamond saw blade for size 230mm up to 1200mm.

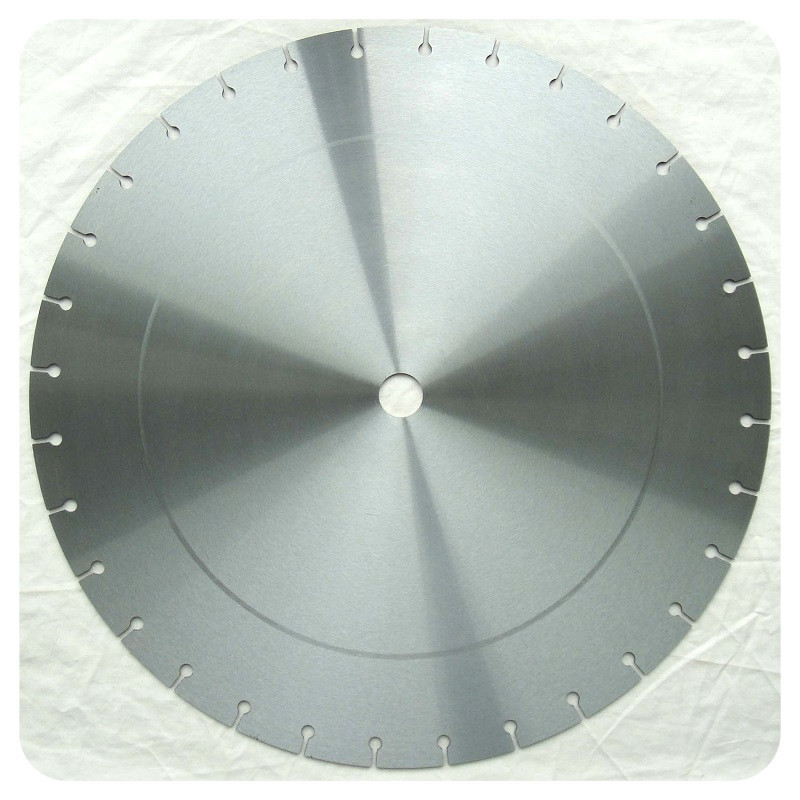

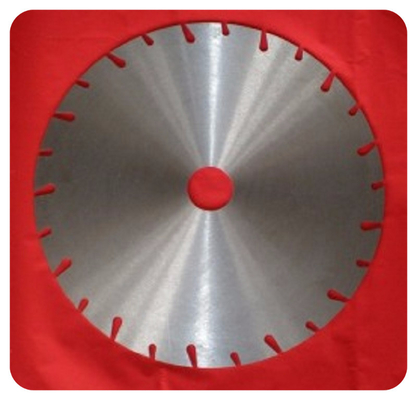

    Diamond Core Blanks

    MBS produces 24 to 100 inch blanks for diamond core applications. Blanks are laser cut to customer specification. The outside diameters of these diamond core blanks are concentric to the inside diameter. This means that the outside and inside diameters must be precisionally made to exact measurements. Like our friction and hot saw blades, all diamond core blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Diamond core blanks are often used to cut marble slabs, granite, stone or other masonary type products

    Quality: for indutrial and professional market



    Quality: for indutrial and professional market



    Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.



    Slot type: Steel Blank | Circular Saw Blades | Sawing & Blades   Power Tool Accessoriess | diameter from 230mm up to 1200mm



    Size and specifications:Remark:  Other special izes and specification can be tailor-made for our clients.

    Diamond Blade Diameter(mm) Steel Core Blank Steel core blank thickness (mm)
    Diameter (mm)
    230 214 210 1.6 1.8 2
    250 234 230 1.6 1.8 2
    300 284 280 1.8 2 2.2
    350 334 330 2 2.2 2.4
    400 384 380 2.2 2.4 2.6 2.8 3
    450 434 430 2.4 2.6 2.8 3
    500 484 480 2.6 2.8 3 3.2
    550 534 530 2.8 3 3.2 3.4
    600 584 580 3 3.2 3.4 3.6
    650 634 630 3.2 3.4 3.6 3.8
    700 684 680 3.4 3.6 3.8 4
    750 734 730 3.6 3.8 4 4.2
    800 784 780 3.8 4 4.2 4.4
    850 834 830 4 4.2 4.4 4.6
    900 884 880 4.5 5 5.5 6
    1000 984 980 5 5.5 6 6.5
    1100 1084 1080 5.5 6 6.5 7
    1200 1184 1180 5.5 6 6.5 7

    Steel Blank | Circular Saw Blades | Sawing & Blades   Power Tool Accessoriess | diameter from 230mm up to 1200mmSteel Blank | Circular Saw Blades | Sawing & Blades   Power Tool Accessoriess | diameter from 230mm up to 1200mmSteel Blank | Circular Saw Blades | Sawing & Blades   Power Tool Accessoriess | diameter from 230mm up to 1200mmSteel Blank | Circular Saw Blades | Sawing & Blades   Power Tool Accessoriess | diameter from 230mm up to 1200mm

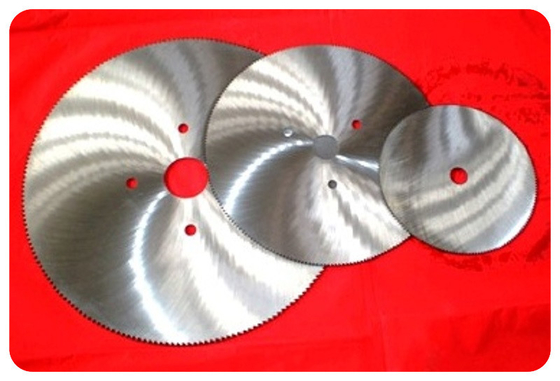

    TCT Saw Blanks

    We make 230mm to 1200mm blanks for carbide tipping. Blanks are laser cut with pockets or teeth to customer’s specification. Like our friction and hot saw blades, all carbide saw blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Carbide blanks are often used to cut wood, aluminum, steel, and other nonferrous materials.

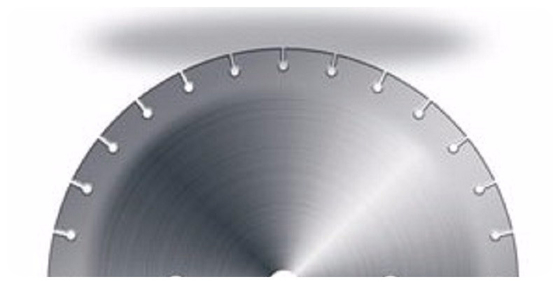

    Segmented Blanks

    MBS makes 24 to 60 inch segmented blanks. Blanks are laser cut to customer’s specification. Like our friction and hot saw blades, all segmented blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Segmented blanks are often used to cut wood, aluminum, and other nonferrous materials.

    Custom Blanks

    MBS will work with your purchasing department or engineers to develop saw blades to custom fit your demanding applications. Disston 100 year history of making saw blades allows us to custom build a precision saw blade to meet your needs
