| Place of Origin: | China |
| Brand Name: | MBS |
| Certification: | TUV |
| Model Number: | LXR0198-001 |
| Name: | Steel Body |
|---|---|
| Tooth pitch: | Laser cut or punched |
| Teeth: | Sharpened |
| Color: | Natural |
| Function: | for making TCT saw blade |
| Teeth Type: | as appointed |
| Surface treatment: | Oiled or painted |
| Body material: | 65Mn |
| Thickness: | 2.0mm |
| Diameter: | 198mm |
| Teeth number: | 24T |

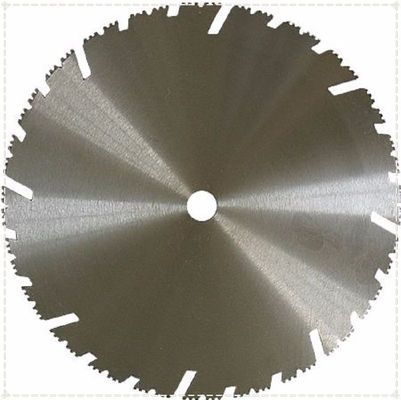

round steel blanks Round Steel Body for TCT Circular Saw Blades Size 313mm x 1.6mm x 30mm Z=24
For producing TCT saw blade for diameter 315mm.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.
Size and specifications:Remark: Other special izes and specification can be tailor-made for our clients.
| TCT Blade | Steel Core Blank | Steel core blank thickness (mm) | ||||
| Diameter mm | Diameter mm | |||||
| 200 | 198 | 1.4 | 1.6 | 1.8 | 2 | 2.2 |
| 230 | 228 | 1.6 | 1.8 | 2 | 2.2 | |
| 250 | 248 | 1.6 | 1.8 | 2 | 2.2 | |
| 255 | 253 | 1.6 | 1.8 | 2 | 2.2 | |
| 300 | 298 | 1.6 | 1.8 | 2 | 2.2 | 2.5 |
| 305 | 303 | 1.6 | 1.8 | 2 | 2.2 | 2.5 |
| 315 | 313 | 1.6 | 1.8 | 2 | 2.2 | 2.5 |
| 350 | 348 | 1.8 | 2 | 2.2 | 2.5 | 2.8 |
| 400 | 398 | 2 | 2.2 | 2.5 | 2.8 | 3 |
| 420 | 418 | 2.2 | 2.5 | 2.8 | 3 | 3.2 |
| 450 | 448 | 2.2 | 2.5 | 2.8 | 3 | 3.2 |
| 455 | 453 | 2.2 | 2.5 | 2.8 | 3 | 3.2 |
| 500 | 498 | 2.5 | 2.8 | 3 | 3.2 | 3.5 |
| 550 | 548 | 2.5 | 2.8 | 3 | 3.2 | 3.5 |
| 600 | 598 | 2.8 | 3 | 3.2 | 3.5 | 3.8 |
| 650 | 648 | 3 | 3.2 | 3.5 | 3.8 | 4 |
| 700 | 698 | 3 | 3.2 | 3.5 | 3.8 | 4 |
| 750 | 748 | 3.2 | 3.5 | 3.8 | 4 | 4.2 |
| 800 | 798 | 3.5 | 3.8 | 4 | 4.2 | 4.5 |
| 850 | 848 | 3.5 | 3.8 | 4 | 4.2 | 4.5 |
| 900 | 898 | 3.8 | 4 | 4.2 | 4.5 | 5 |
| 1000 | 998 | 4 | 4.5 | 5 | 5.5 | 6 |
| 1100 | 1098 | 4.5 | 5 | 5.5 | 6 | 6.5 |
| 1200 | 1198 | 5.5 | 6 | 6.5 | 7 | 8 |
MBS produces 24 to 100 inch blanks for diamond core applications. Blanks are laser cut to customer specification. The outside diameters of these diamond core blanks are concentric to the inside diameter. This means that the outside and inside diameters must be precisionally made to exact measurements. Like our friction and hot saw blades, all diamond core blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Diamond core blanks are often used to cut marble slabs, granite, stone or other masonary type products
MBS makes 24 to 60 inch segmented blanks. Blanks are laser cut to customer’s specification. Like our friction and hot saw blades, all segmented blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Segmented blanks are often used to cut wood, aluminum, and other nonferrous materials.
MBS will work with your purchasing department or engineers to develop saw blades to custom fit your demanding applications. Disston 100 year history of making saw blades allows us to custom build a precision saw blade to meet your needs
