endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod
    • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod
  • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    Product Details:

    Place of Origin: China
    Brand Name: Yonggao
    Model Number: YT--0010
    material: aluminum
    drive: motor
    movement: two axial
    speed: potentiometer controlled
    degeree: 160 degree
    weight: 20kg
    color: optional
    power: 7.5V

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 sets
    Contact Now
    Detailed Product Description

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod



    YG series endzone camera system that is designed for athletic programs of all sizes. This system is easy to transport, quick to set-up, and of all the endzone video systems on the market, our 30' -9meter mast system is the only manufactured in China, with low price and good quality

    YG series endzone camera

    Mast material Aluminum tube
    Height extend 9m /30ft
    Transport length 1.8m
    Weight 15kg –35 pound
    Pantilt Manual
    Stand 4 legs tripod –2 section, adjustable for uneven land
    Pole rising Manual
    Ease to setup Easy
    Ease to use Easy
    Customized Color Available
    Complete system Yes
    HDMI cable 8m
    Monitor LCD 10inch with attached battery
    Rain gear Yes
    Travel bag Yes
    Level Yes
    Wheels Yes





    Features

    § Both electrical pantilt Camera Controls and manual camera control

    E-remore pan tilt may not suitable to rush movements, our manual control pan tilt, suitable to any kind of requests.

    § 30 ft. Extended Height

    § Whole life hardware Warranty

    § Easy Set-up and Operation

    § Everything Included (no camera)

    § 10" Monitor

    § Choice of Tower Color

    § Anti 80 miles wind (ground nut and guyed wire in rush climate)

    §

    • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod
    • Advantages

    1. The Telescopic Camera mast has a minimum height of 170cm and the maximum height can be up to 18m.

    • 2. Has tripod support and trolley base, easy to move and transport
    • 3. mast has two types for selection, pneumatic cyliner and hand pull-up
    • 4. top mounted quick release camara plate
    • 5. operate plate to control the camera
    • 6. LCD monitor screen and extension cable
    • 7. Transproting bag
    • 8.one 12V-10Ah battaery is equiped with a converter to 7.2V, can supply to drive motors and Camera/DV screen
    • 9. Rain covers
    • 10. water level
    •
    • Specifications:
    • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod
    • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod
    • endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

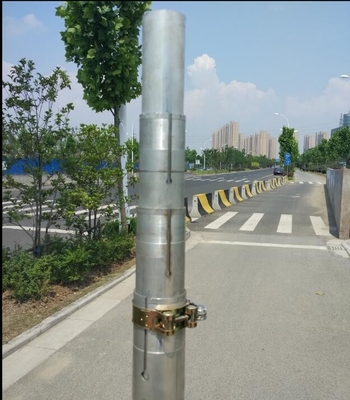

    9m high aluminium telescopic push-up mast
    fully extracted length (height) 9m
    transportation length 1.8m
    weight 15kg
    bottom diameter 60mm
    top diameter 40mm
    wall thickness 2mm
    number of section 5
    mast material high quality anodized aluminium
    strong interlock clamps made from stainless steel
    Tripod 4 legs



    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod



    pantilt control type:

    1. remore control, electrial motor drive

    2. manual control

    turn the mast body around like Submarines periscope,

    turn the camera up and down with a string and gears.



    Pan tilt Screen HDMI wire

    Electrical Include:

    Pantilt head

    Remoter

    battery

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod



    8 meter

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    Hand control includ

    Pantilt

    Drive string

    Gears

    Handle



    All screen have attached battery If camera has wifi, so no need this wire



    our telescopic mast for selection

    endzone kamera kamera e fundit endzone camera system 9m high with 10inch LCD screen portable 4 legs tripod

    Features

    • 3 to 15m full extended models
    • Car suitable transport length
    • Hand push up
    • Max 80mm Diameter Bottom Section -
    • 25mm Diameter Top Section
    • Aluminum 6063 tube 2mm thickness
    • Stainless steel clamp fast fasten, without tool
    • COMMERCIAL QUALITY


    Usually these masts require a flat or socket wrench, with the quick release clamps you can raise and lower the masts without any tools.
