| Place of Origin: | China |
| Brand Name: | MBS |
| Certification: | TUV |
| Model Number: | LXR004 |
| Name: | Circular Saw Blades |
|---|---|
| Carbide material: | YG8 |
| Welding: | Auto-machine weld |
| Tooth pitch: | Laser cut |
| Surface treatment: | Oiled or painted |
| Color: | Natural |
| Feature: | Circular saw blade |
| Cutting: | Universal crosscut |
| Body material: | 65Mn |

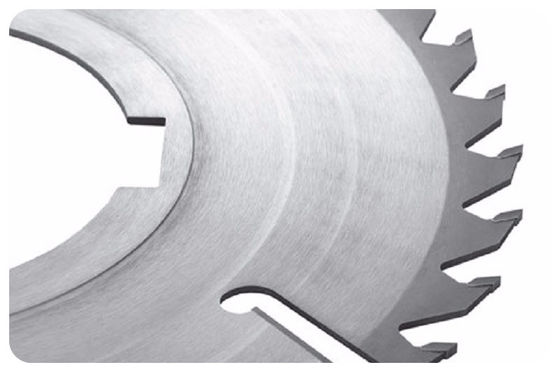

TCT dairəvi bıçağı gördüm - Circular Saw Blades - Tools - universal crosscut t from diameter from 125mm up to 750mm
General cross cut blade, used for cross cutting softwood, hardwood, plywood, chipboard, multi-board, panels, MDF, plated & counted-plated panels, laminate & Bi-laminate, plstic and FRP. Also for rip cutting along the grain Used for sizing saws, table saws, crosscut saws.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.
Teeth number could be adjusted upon request.
Teeth type: ATB, TCG
Size and specifications:
| Diameter (mm) | Kerf (mm) | Body Thickness (mm) | Teeth number |
| 125 | 2.6 | 1.6 | 24,30,36 |
| 150 | 2.6 | 1.6 | 28,30,36, 42, 48 |
| 180 | 2.6/2.8 | 1.6/1.8 | 32,36,42,48,54,56 |
| 200 | 2.6/2.8 | 1.6/1.8 | 36,40,48,56,64 |
| 230 | 2.8 | 1.8 | 40,48,54,60,64,66,72 |
| 250 | 3.0 | 2.0 | 48,50,60,64,66,72,80 |
| 270 | 3.0 | 2.0 | 48,50,60,64,66,72,80 |
| 300 | 3.2 | 2.2 | 60,72,80,84,96 |
| 330 | 3.2 | 2.2 | 60,72,84,96,100 |
| 350 | 3.2 | 2.2 | 72,84,98,100,108 |
| 400 | 3.5 | 2.5 | 80,96,112,120 |
| 450 | 3.5 | 2.5 | 90,108,126,140 |
| 500 | 3.5/3.8 | 2.5/2.8 | 100,120,140 |
| 550 | 3.8 | 2.8 | 110,120,144 |
| 600 | 4.0 | 3.0 | 120,144,150 |
| 650 | 4.0 | 3.0 | 120,140,150 |
| 700 | 4.2 | 3.2 | 120,140,150 |
| 750 | 4.2/4.6 | 3.2/3.6 | 120,140,150 |
Remark: Other special izes and specification can be tailor-made for our clients.
Advantage of our products:
To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.
All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
