Place of Origin: | China |
Brand Name: | MBS |
Certification: | TUV |
Model Number: | LXR003-1 |
Name: | TCT Circular Saw Blades |
---|---|
Carbide material: | YG8 |
Welding: | Auto-machine weld |
Tooth pitch: | Laser cut |
Surface treatment: | Oiled or painted |
Color: | Natural |
Feature: | Carbide Tipped |
Function: | Wood working |
Diameter: | 200mm to 1200mm |
Plate Thickness: | 1.8mm to 5.5mm |
Kerf: | 2.8mm to 7.0mm |
Body Material: | 65Mn |

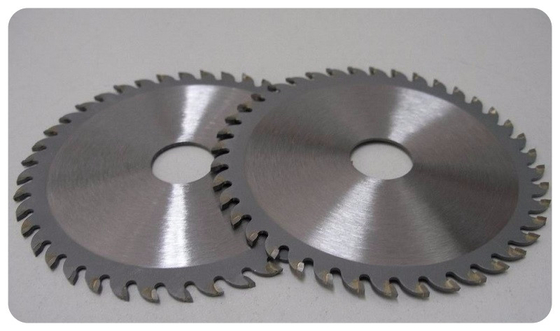

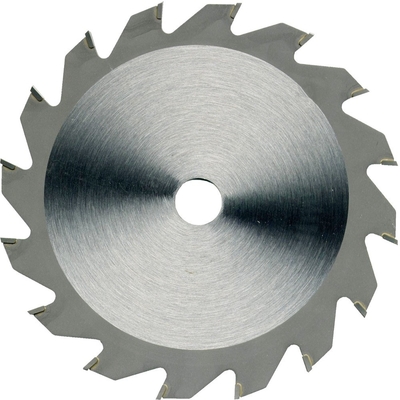

TCT Circular Saw Blades for wood ripping cut | Cutting & Blades | MBS Hardware | Laser cut expansion slot

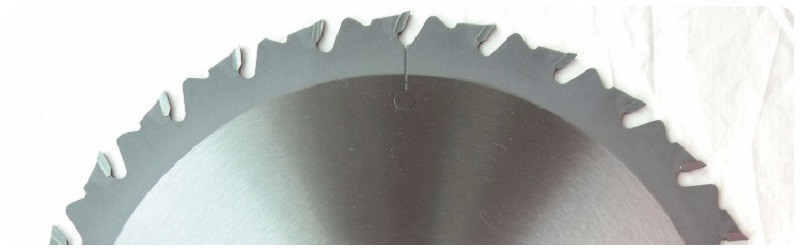

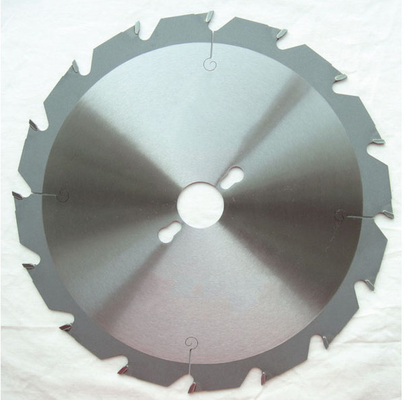

Diameter from 200mm up to 1200mm,ATB or FT teeth with or without anti-kickback, punched or laser cut expansion slot
For ripping cut softwood, hardwood along the grain and occasional crosscut, also suitable for cutting plywood and chipboard.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.
Teeth number could be adjusted upon request.
Teeth type: ATB, FT
Size and specifications:
Diameter (mm) | Kerf (mm) | Body Thickness (mm) | Teeth number |
200 | 2.8 | 1.8 | 16, 20, 24 |
230 | 2.8 | 1.8 | 16, 20, 24 |
235 | 2.8 | 1.8 | 16, 20, 24 |
250 | 3.0 | 2.0 | 16,18, 24,28,30 |
270 | 3.0 | 2.0 | 16,18, 24,28,30 |
300 | 3.2 | 2.2 | 20, 24,28,30,32,36 |
315 | 3.2 | 2.2 | 20, 24,28,30,32,36 |
330 | 3.2 | 2.2 | 24,28,30,32,36,40,42 |
350 | 3.2 | 2.2 | 24,28,30,32,36,40,42,48 |
400 | 3.5 | 2.5 | 28,30,32,36,40,42,48,60 |
450 | 3.5 | 2.5 | 32,36,40,42,54,60 |
500 | 3.5 | 2.5 | 32,36,40,44,48,60,64,72 |
550 | 3.8 | 2.8 | 32,40,44,48,50,60,80 |
600 | 4.0 | 3.0 | 36,40,44,48,54,56,72,90,96 |
650 | 4.0 | 3.0 | 40,48,52,56,72,90,96,108 |
700 | 4.2 | 3.2 | 44,48,56,60,84,90,108,116 |
750 | 4.6 | 3.6 | 48,54,56,60,84,90 |
800 | 5.0 | 4.0 | 50,54,60,72,84,96 |
850 | 5.5 | 4 | 50,54,60,72,84,102 |
900 | 6.0 | 4.5 | 50,54,60,90,96,108 |
950 | 6.0 | 4.5 | 60,80,90,96,114 |
1000 | 7.0 | 5.5 | 80,90,100,120 |
1100 | 7.0 | 5.5 | 90,100,110,130 |
1200 | 7.0 | 5.5 | 100,120,140 |
Remark: Other special izes and specification can be tailor-made for our clients.
Advantage of our products:
To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.
All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
