    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR002-1
    Name: table saw blade
    Carbide material: YG8
    Welding: Auto-machine weld
    Tooth pitch: Laser cut
    Surface treatment: Oiled or painted
    Color: Natural
    Feature: Thin Kerf
    Cutting: Rip Cut
    Diameter: 140mm to 600mm
    Plate thickness: 1.4mm to 3.5mm
    Kerf: 2.0mm to 5.2mm
    Teeth Number: 20 to 40
    Bore diameter: 20, 22,23, 25.4, 30, 32, 40, ect
    Body Material: 65Mn

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Contact Now
    Detailed Product Description

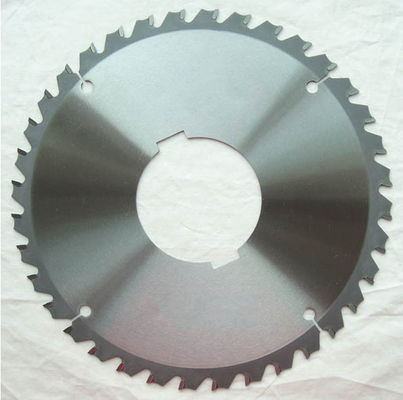

    table saw blade thin kerf wood ripping cut diameter from 140mm up to 600mm w punched expansion slot

    with or without anti-kickback & laser cut expansion slot

    For multi ripping cut softwood, hardwood, occasional crosscut, also for cutting plywood and chipboard. Thin kerf get greatly reduce material waste.

    table saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slottable saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slottable saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slot

    Quality: for indutrial and professional market

    Bore: all sizes and upon request, including 30mm, 40mm, 50mm, 60mm, 70mm, 80 mm.

    Teeth number could be adjusted upon request.  Add wipers is available upon request.

    Teeth type:  ATB,FT

    table saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slot

    There are four basic blade types, determined by the shape, or grind, of their teeth. They are flat top grind (FTG), alternate top bevel (ATB), combination (ATBR), and triple-chip grind (TCG) [Figure 1 and Photo A].

    FTG blades have teeth whose top edges are square to the saw plate. Also called rakers, these teeth attack the wood much like a chisel chopping out the ends of a mortise. They’re fast cutting and durable, but don’t produce a clean surface. They’re designed to rip, sawing perpendicular to the grain.

    The teeth on ATB blades are angled across the top edge, with every other tooth “leaning” in the opposite direction. The shape of the tooth causes it to shear the wood fibers cleanly using a slicing motion. The steeper the bevel angle, the cleaner the teeth cut, but the quicker they dull (Figure 2). Most 40-tooth ATB blades are marketed as “all-purpose” blades.

    Combination blades consist of 50 teeth arranged in sets of five, with four ATB teeth followed by a raker tooth (thus the ATBR designation.) The ATB teeth are designed to crosscut cleanly while the raker teeth aid in ripping. Combination blades are also considered “all-purpose” blades.

    The teeth on a TCG blade alternate between a raker tooth and a chamfered tooth. The chamfered tooth roughs out the cut, while the following FTG tooth cleans it up. This tooth configuration is meant for sawing dense materials: plastic laminate, solid surface materials like Corian, and non-ferrous metals like brass and aluminum. Pointy ATB teeth would blunt quickly from this stuff.



    Size and specifications:

    Diameter (mm) Kerf (mm) Body Thickness (mm) Teeth number
    140 2.0 1.4 20, 24
    160 2.0 1.4 24,30
    180 2.2 1.6 16,24,30
    200 2.2 1.6 16,24,28,32,36
    225 2.2 1.6 16,28,32,36
    250 2.2 1.6 16,20, 24,32,36
    280 2.8 2.0 16,20, 24,32,36
    300 2.5 1.8 20,24,28,32,36
    300 2.8 2.0 20,24,28,32,36
    300 3.2 2.2 20,24,28,32,36
    320 3.0 2.2 20,24,32,36
    320 3.2 2.2 20,24,32,36
    350 3.0 2.2 24,28,40
    350 3.5 2.5 24,28,40
    400 4.0 2.8 24,28,32, 36
    450 4.4 3.0 24
    500 4.8 3.5 28
    550 4.8 3.5 28
    600 5.2 3.5 32

    Remark:  Other special izes and specification can be tailor-made for our clients.



    table saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slottable saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slottable saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slottable saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slot

    Advantage of our products:

    • Laser-cut saw plate made from saw blade specific alloy and flattened to ensure that the blade runs straight and true.
    • Superior grade Tungsten Carbide tips specifically suited for your application including sub micron grain C-4 when appropriate for extended edge life. Large carbide tips mean more sharpening points per blade.
    • Robotic CNC controlled brazing and grinding machinery produce consistent and precise tolerances.
    • Thousands of blades in stock as well as custom-made blades.
    • Quality blades provide for greater productivity without downtime.

    table saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slot table saw blade thin kerf wood ripping cut  diameter from 140mm up to 600mm w punched expansion slot





    Tensioning

    To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.



    Control of cutting geometry

    All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
