    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR010
    Name: TCT Circular Saw Blades for plastic in general and FRP
    Carbide material: YG8
    Welding: Auto-machine weld
    Tooth pitch: Laser cut
    Surface treatment: Oiled or painted
    Color: Natural
    Function: for plastic in general and FRP
    Feature: body with Low noise laser cut
    Body Material: 65Mn
    Contact Now
    Detailed Product Description

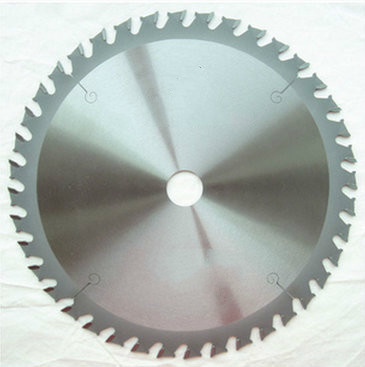

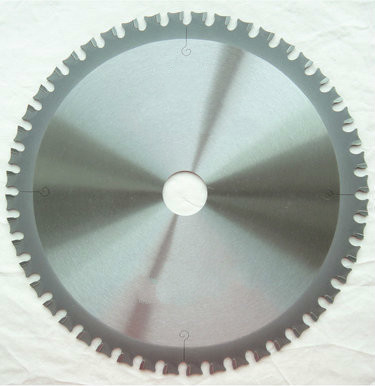

    Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm

    The TCT Circular Saw Blades (Sierras Circulars) are designed as plastic cutting blades that suitable for cutting plastic material in general, such as plexiglass (FRP), solid suface and PVC etc…

    The blades are also suitable for ripping & cross cutting laminates & Bi-laminates, veneered or plastic coated board.

    Quality: for indutrial and professional market

    Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm                     Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm

    Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.

    Teeth number could be adjusted upon request.

    Teeth type:  ATB, TCG

    Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm

    Size and specifications:

    Diameter (mm) Kerf (mm) Body Thickness (mm) Teeth number
    125 2.6 1.6 30,32
    150 2.6 1.6 36,40,42
    165 2.6 1.6 40,46
    180 2.8 1.8 44,50
    200 2.8 1.8 56,60
    216 2.8 1.8 56,60
    230 2.8 1.8 60, 64, 80
    250 3.0 2.0 72,80, 96, 100
    300 3.2 2.2 72,84,96, 100, 120
    350 3.2 2.2 84,96, 100, 108, 120
    400 3.5 2.5 96,108,112, 120
    420 3.5 2.5 96,108,112, 120
    450 3.5 2.5 108,120, 140
    500 3.5 2.5 120,132, 140
    550 3.8 2.8 132,144, 160, 180

    600
    4.0 3.0 140, 160, 180
    650 4.0 3.0 140, 160, 180
    700 4.2 3.2 140, 160, 180
    750 4.6 3.6 140, 160, 180

    Remark:  Other special izes and specification can be tailor-made for our clients.

    Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mmLâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mmLâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mmFo
    Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm

    Advantage of our products:

    • Laser-cut saw plate made from saw blade specific alloy and flattened to ensure that the blade runs straight and true.
    • Superior grade Tungsten Carbide tips specifically suited for your application including sub micron grain C-4 when appropriate for extended edge life. Large carbide tips mean more sharpening points per blade.
    • Robotic CNC controlled brazing and grinding machinery produce consistent and precise tolerances.
    • Thousands of blades in stock as well as custom-made blades.
    • Quality blades provide for greater productivity without downtime.

    Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm Lâminas de serra circular TCT para plástico em geral e FRP body with low noise laser cut diameter from 125mm up to 750mm





    Tensioning

    To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.



    Control of cutting geometry

    All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
