3--18m telescopic antenna towers and lightweight antenna mast communication tower
We offer hand push up masts for any application imaginable, including communications, surveillance, wireless data transfer, two-way radio, cell phone, and numerous unique applications. Our telescopic antenna towers are ideal for transmitting, receiving, and collecting data, specifically when lightweight antenna masts are needed for portability and rapid deployment. Custom solutions and packages can be designed to meet any and all requirements you may have.
specification
3m,4m--3 sections, 35/40/45mm tubes
5m,6m--4 sections 35/40/45/50mm tubes
7m,8m,9m---6 sections 35---60mm tubes
10--18m-----8--9sections
Hand push-up
material: 6063*2mm wall thickness tube
tripod: adjustable 3/4 legs
|
Accessories:
|
|
|
Pulling cord box with handle bars
|
3 units
|
|
Ground anchor
|
3 pieces
|
|
Handle lifting bar
|
2 pieces
|
|
20cm 304 stainless steel stakes
|
6 pieces
|
|
Tripod
|
1 unit
|
|
Ideal for:
Emergency Response Antenna Systems, Restricted Space Antennas - Prepping Systems
Elevated Photography - Weather Instruments - WiFi Site Surveying - End Zone Cameras
Our best-sellingpush-up pole is made of the highest quality aluminum and built to last. Extremely portable but ready to provide years of permanent service too!
light weight for easy carrying and perfect for temporarily supporting antennas. More versatile than fiberglass or plastic masts and particularly useful when a lightweight metal mast is required.Tube wall thickness is2mm and heavy-duty thumb nut compression clamps make for quick and easy adjustment of individual sections.
You can raise any section by any amount to get the exact height and rigidness you need! When securely mounted at the base and with most lightweight items attached, guying is not usually necessary. However, guying is always recommended.
The most frequent question we are asked is "How much weight will this mast support?" The answer is... It will depend entirely on what you mount on it, how it is mounted at the base, if guys are used and how you plan to extend the mast with the load attached. Our own personal, unscientific experience has shown 5 to 10 pounds of vertical weight is reasonable. Keep in mind, this is vertical weight and wind and/or off-center mountings may cause the mast to sway or flex. Once again, guying and a good base support is highly recommended.
Used in conjunction with our matching mounting brackets, this mast (portable light weight) is IDEAL for permanent mounting on RV's, buildings or posts! The ability to raise and lower it quickly means this mast can stay mounted all the time. For portable applications, we have matching tripods and drive-on tire mount options available too. See our other listings for more info on these items!
Spare parts are available but rarely needed!
|
|
 |

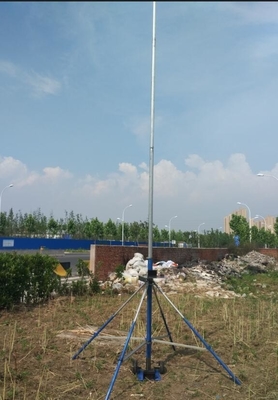

tripod type
embeded type

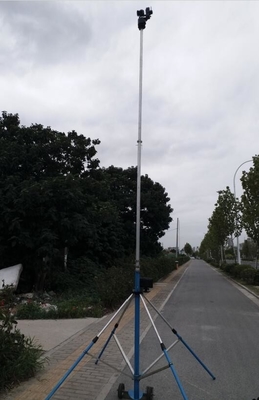

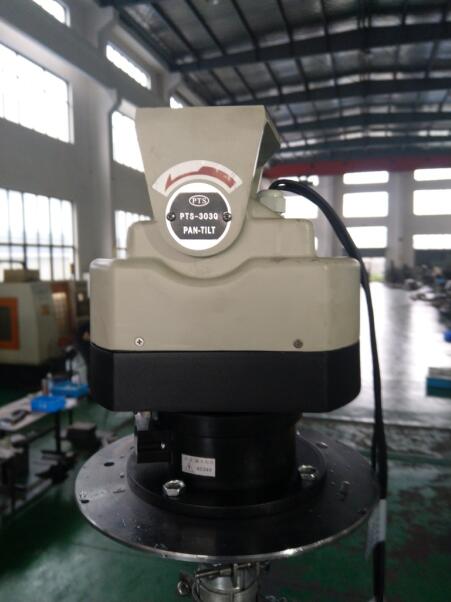

antenna pantilt/ camera pantilt
