Place of Origin: | China |
Brand Name: | MBS |
Certification: | TUV |
Model Number: | LXR018-001 |
Name: | TCT Saw Blade for Scoring Saw Blade |
---|---|
Carbide material: | YG8 |
Welding: | Auto-machine weld |
Tooth pitch: | Laser cut |
Surface treatment: | Oiled or painted |
Color: | Natural |
Material: | 65Mn |
Diameter: | 80-200mm |
Kerf: | 3.1mm - 5.4mm |
Plate thickness: | 2.2mm - 3.2mm |
Bore: | 20mm, 22,23mm |
Teeth number: | 10T - 36T |

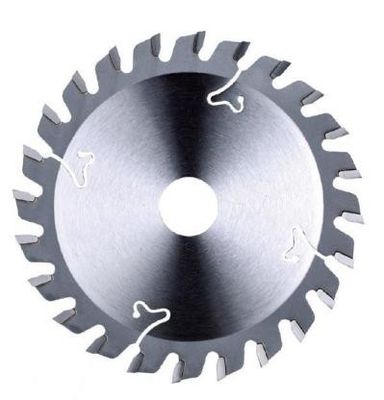

TCT Saw Blade for Scoring Saw Blade from 80mm to 200mm with low noise expansion slots
This type of Scoring TCT Circular Saw Blades with conical teeth are suitable for use on automatic sectioning machines. The conical cutting elements can change the cutting width according to change cutting depth.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, etc
Teeth number could be adjusted upon request.
Teeth type: Conical
Size and specifications:
Diameter (mm) | Kerf | Plate thickness (mm) | Teeth Number |
80 | 3.1-4.2 | 2.2 | 10 |
100 | 3.1-4.2 | 2.2 | 20 |
105 | 3.1-4.2 | 2.2 | 20 |
105 | 3.5-4.5 | 2.2 | 20 |
115 | 3.1-4.2 | 2.2 | 20 |
115 | 3.1-4.2 | 2.2 | 24 |
115 | 3.5-4.5 | 2.2 | 20 |
115 | 3.5-4.5 | 2.2 | 24 |
120 | 3.1-4.2 | 2.2 | 20 |
120 | 3.1-4.2 | 2.2 | 24 |
120 | 3.5-4.5 | 2.2 | 20 |
120 | 3.5-4.5 | 2.2 | 24 |
120 | 3.8-4.8 | 2.2 | 20 |
125 | 3.1-4.2 | 2.2 | 24 |
125 | 3.1-4.2 | 2.2 | 20 |
125 | 3.5-4.5 | 2.2 | 20 |
125 | 3.5-4.5 | 2.2 | 24 |
125 | 3.8-4.8 | 2.2 | 20 |
125 | 3.8-4.8 | 2.2 | 24 |
150 | 4.4-5.4 | 3.2 | 24 |
150 | 4.4-5.4 | 3.2 | 36 |
160 | 3.1-4.2 | 2.2 | 24 |
160 | 3.1-4.2 | 2.2 | 36 |
160 | 3.8-4.8 | 2.5 | 24 |
160 | 3.8-4.8 | 2.5 | 36 |
160 | 4.4-5.4 | 3.2 | 24 |
160 | 4.4-5.4 | 3.2 | 36 |
180 | 4.4-5.4 | 3.2 | 28 |
180 | 4.5-5.7 | 3.2 | 36 |
200 | 4.0-5.0 | 3.2 | 32 |
200 | 4.0-5.0 | 3.2 | 36 |
200 | 4.4-5.4 | 3.2 | 32 |
200 | 4.4-5.4 | 3.2 | 36 |
Remark: Other special izes and specification can be tailor-made for our clients.
Advantage of our products:
To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.
All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
