|Place of Origin:||China|
|Name:||M2 HSS Cold Saw Blades|
|Teeth:||With or without|
|Teeth type:||AW, BW, B, C, A|
|Color:||Natural, Black, colorful, Silver, golden, copper|
|Function:||for rmetal tubes and pipes cutting|
|Feature:||surface hardening coating|
|Body material:||M2, W9, other high speed steel|
|Diameter:||175mm to 550mm|
|Plate thickness:||1.2mm to 5.0mm|
|Teeth Number:||70 to 440|

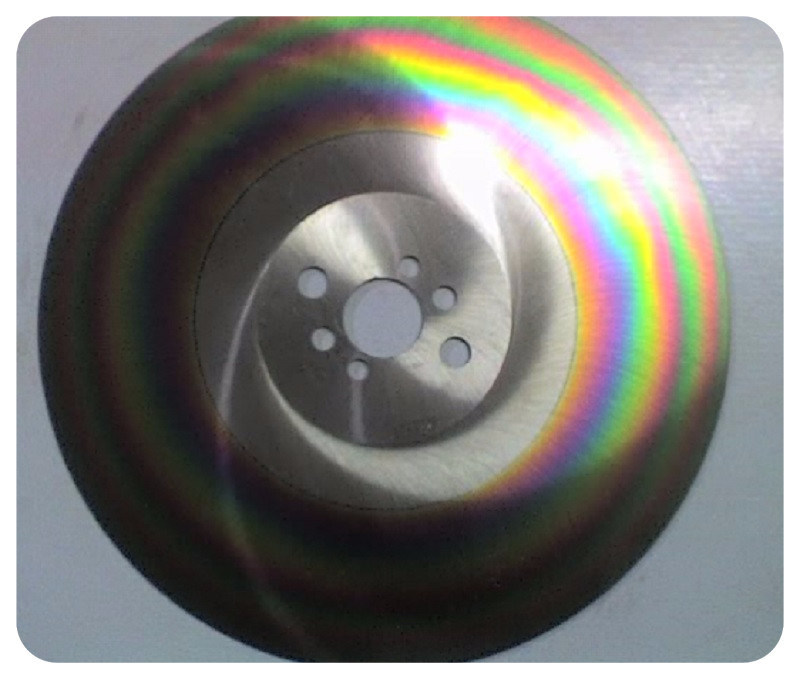

M2 HSS Cold Saw Blades For Metal Cutting / MBS Hardware / diameter from 175mm up to 550mm
Mainly used for cut-off steels and alloys with hardness between 500N/mm2 and 800N/mm2. This high speed steel saw blades are used on manual, semi-auto, and fully auto sawing machines to cut tubes and pipes open sections, and solid sections up to 200mm.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 25.4mm, 32mm, 40mm, 50mm, 90mm, ect.
Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.
Other sizes and specifications:Remark:
|Diameter (mm)||Bore (mm)||Plate thickness (mm)||Teeth number|
Cold Saw Blades are designed to cut ferrous and non-ferrous metals. Cold Saw blades are made from M2 HSS steel and M-35 (5% cobalt) for stainless and tool steels. Our cold saw blades are heat treated to 64-65 HRc and triple tempered and press quenched to ensure flatness. These blades are specifically suited for use on manual, semi-automatic and fully-automatic cold saws. Cold saw blades operate at slow speeds typically 10-50 RPM when cutting ferrous metal but can run faster when cutting non ferrous metal. Contact our highly experienced sales department for recommendations on cutting speeds and the proper tooth count. Flood coolant or at the least a mist spray is highly recommended for optimal cut quality and blade life. When ordering please specify the type of material being cut so the correct tooth geometry is furnished for your job. Cold saw blades are commonly listed in millimeters (converter tool). If you do not see your size, contact us for availability.
Cold Saw Blades are available with PVD coatings as well (scroll down to see images). PVD coatings increase the surface hardness and allow for increased speeds and feeds. The proper PVD coating is determined by the material being cut, the saw being used and the method of coolant application eg. flood, mist or no coolant. Contact our sales department for technical recommendation when considering PVD coatings.
