| Place of Origin: | China |
| Brand Name: | Yonggao |
| Model Number: | YT--0010 |
| material: | aluminum |
|---|---|
| drive: | motor |
| movement: | two axial |
| speed: | potentiometer controlled |
| degeree: | 160 degree |
| weight: | 20kg |
| color: | optional |
| power: | 7.5V |
| Minimum Order Quantity: | 2 sets |
|---|

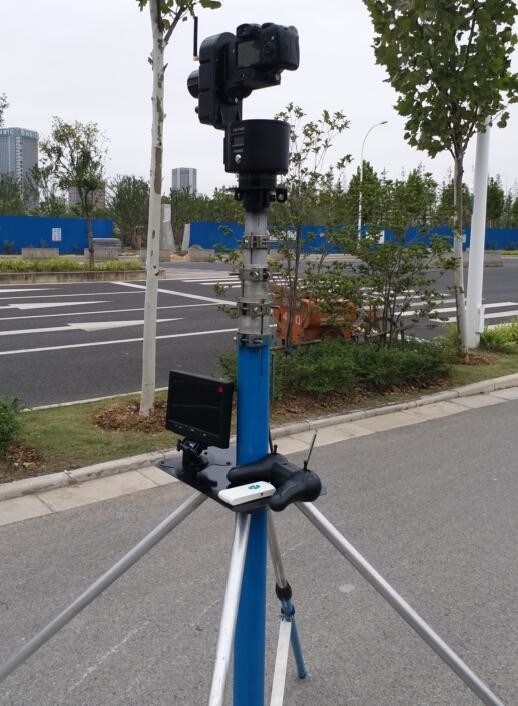

endzone camera system telescopic mast antenna mast 9m high with 10inch LCD screen portable 4 legs tripod
YG series endzone camera system that is designed for athletic programs of all sizes. This system is easy to transport, quick to set-up, and of all the endzone video systems on the market, our 30' -9meter mast system is the only manufactured in China, with low price and good quality
YG series endzone camera
| Mast material | Aluminum tube |
| Height extend | 9m /30ft |
| Transport length | 1.8m |
| Weight | 15kg –35 pound |
| Pantilt | Manual |
| Stand | 4 legs tripod –2 section, adjustable for uneven land |
| Pole rising | Manual |
| Ease to setup | Easy |
| Ease to use | Easy |
| Customized Color | Available |
| Complete system | Yes |
| HDMI cable | 8m |
| Monitor | LCD 10inch with attached battery |
| Rain gear | Yes |
| Travel bag | Yes |
| Level | Yes |
| Wheels | Yes |
Features
§ Both electrical pantilt Camera Controls and manual camera control
E-remore pan tilt may not suitable to rush movements, our manual control pan tilt, suitable to any kind of requests.
§ 30 ft. Extended Height
§ Whole life hardware Warranty
§ Easy Set-up and Operation
§ Everything Included (no camera)
§ 10" Monitor
§ Choice of Tower Color
§ Anti 80 miles wind (ground nut and guyed wire in rush climate)
§
1. The Telescopic Camera mast has a minimum height of 170cm and the maximum height can be up to 18m.
| 9m high aluminium telescopic push-up mast | |
| fully extracted length (height) | 9m |
| transportation length | 1.8m |
| weight | 15kg |
| bottom diameter | 60mm |
| top diameter | 40mm |
| wall thickness | 2mm |
| number of section | 5 |
| mast material | high quality anodized aluminium strong interlock clamps made from stainless steel |
| Tripod | 4 legs |
pantilt control type:
1. remore control, electrial motor drive
2. manual control
turn the mast body around like Submarines periscope,
turn the camera up and down with a string and gears.
| Pan tilt | Screen | HDMI wire |
|
Electrical Include: Pantilt head Remoter battery
|
|
8 meter
|
|
Hand control includ Pantilt Drive string Gears Handle
|
All screen have attached battery | If camera has wifi, so no need this wire |
our telescopic mast for selection
|
Usually these masts require a flat or socket wrench, with the quick release clamps you can raise and lower the masts without any tools.
