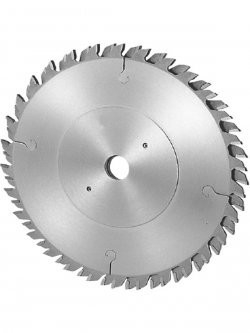

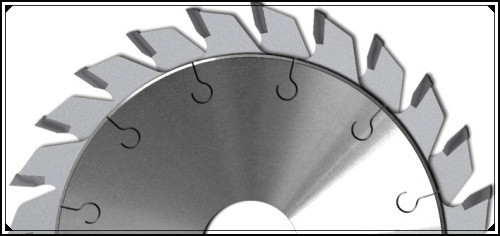

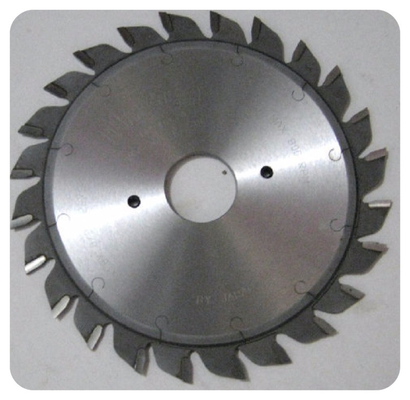

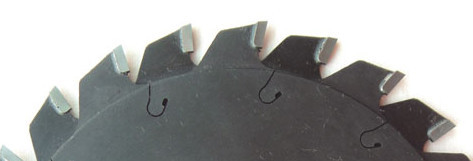

Adjustable Scoring Saw Blades - TCT Adjustable Scoring - diameter 100mm and 125mm

This type TCT circular saw blades are double circular saw blades, equipped of shims for adjusting the cutting width. The blades are suitable for use on particular sectioning machines.

For indutrial and professional market

Diameter: 100mm, 125mm

Bore: 20mm

Kerf: 3.6mm

Plate thickness: 2.8mm

Teeth number: 12+12 in pairs

Bore: all sizes and upon request, including 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, etc…

Teeth number could be adjusted upon request.

Teeth type: FT, ATB

Other sizes and specifications:

Remark:  Other special izes and specification can be tailor-made for our clients.

Advantage of our products:

• Laser-cut saw plate made from saw blade specific alloy and flattened to ensure that the blade runs straight and true.
• Superior grade Tungsten Carbide tips specifically suited for your application including sub micron grain C-4 when appropriate for extended edge life. Large carbide tips mean more sharpening points per blade.
• Robotic CNC controlled brazing and grinding machinery produce consistent and precise tolerances.
• Thousands of blades in stock as well as custom-made blades.
• Quality blades provide for greater productivity without downtime.

Tensioning

To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.

Control of cutting geometry

All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.

Size and specifications for wood cross cutting:
