ground based aerial photography mast & telescopic video camera pole 30ft

ground based aerial photography mast & telescopic video camera pole 30ft

    • ground based aerial photography mast & telescopic video camera pole 30ft
    • ground based aerial photography mast & telescopic video camera pole 30ft
  • ground based aerial photography mast & telescopic video camera pole 30ft

    Product Details:

    Place of Origin: China Jiangsu
    Brand Name: Yonggao
    Model Number: YG-T006
    material: 6063 alu alloy
    lock: self lock
    erect: by hand
    surface: anodized or painted
    Contact Now
    Detailed Product Description

    ground based aerial photography mast & telescopic video camera pole 30ft



    We offer hand push up masts for any application imaginable, including communications, surveillance, wireless data transfer, two-way radio, cell phone, and numerous unique applications. Our telescopic antenna towers are ideal for transmitting, receiving, and collecting data, specifically when lightweight antenna masts are needed for portability and rapid deployment. Custom solutions and packages can be designed to meet any and all requirements you may have.



    specification

    3m,4m--3 sections, 35/40/45mm tubes

    5m,6m--4 sections  35/40/45/50mm tubes

    7m,8m,9m---6 sections 35---60mm tubes

    10--18m-----8--9sections



    Hand push-up

    material: 6063*2mm wall thickness tube

    tripod: adjustable 3/4 legs



    Accessories:

    Pulling cord box with handle bars
    3 units
    Ground anchor
    3 pieces
    Handle lifting bar
    2 pieces
    20cm 304 stainless steel stakes
    6 pieces
    Tripod
    1 unit





    Ideal for:
    Emergency Response Antenna Systems, Restricted Space Antennas - Prepping Systems
    Elevated Photography - Weather Instruments - WiFi Site Surveying - End Zone Cameras


    Our best-sellingpush-up pole is made of the highest quality aluminum and built to last. Extremely portable but ready to provide years of permanent service too!

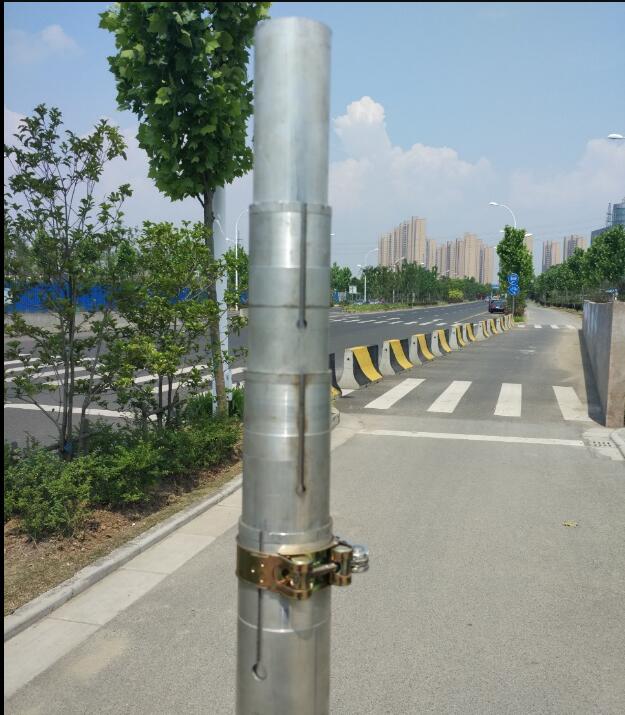

    light weight for easy carrying and perfect for temporarily supporting antennas. More versatile than fiberglass or plastic masts and particularly useful when a lightweight metal mast is required.Tube wall thickness is2mm and heavy-duty thumb nut compression clamps make for quick and easy adjustment of individual sections.

    You can raise any section by any amount to get the exact height and rigidness you need! When securely mounted at the base and with most lightweight items attached, guying is not usually necessary. However, guying is always recommended.

    The most frequent question we are asked is "How much weight will this mast support?" The answer is... It will depend entirely on what you mount on it, how it is mounted at the base, if guys are used and how you plan to extend the mast with the load attached. Our own personal, unscientific experience has shown 5 to 10 pounds of vertical weight is reasonable. Keep in mind, this is vertical weight and wind and/or off-center mountings may cause the mast to sway or flex. Once again, guying and a good base support is highly recommended.

    Used in conjunction with our matching mounting brackets, this mast (portable light weight) is IDEAL for permanent mounting on RV's, buildings or posts! The ability to raise and lower it quickly means this mast can stay mounted all the time. For portable applications, we have matching tripods and drive-on tire mount options available too. See our other listings for more info on these items!

    Spare parts are available but rarely needed!


    https://www.k1cra.com/v/vspfiles/templates/223/images/clear1x1.gif





    ground based aerial photography mast & telescopic video camera pole 30ft

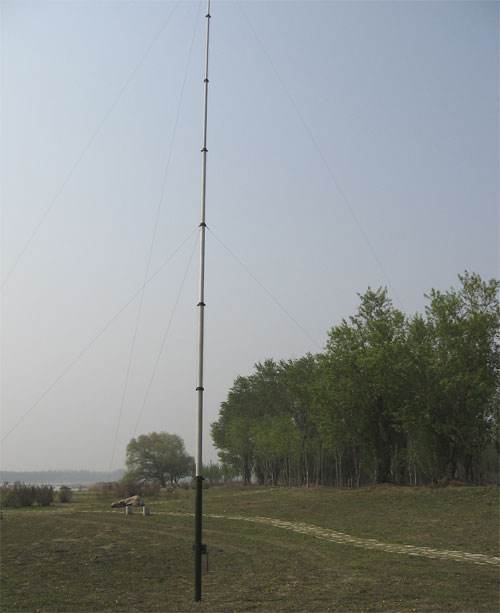

    tripod type



    ground based aerial photography mast & telescopic video camera pole 30ft

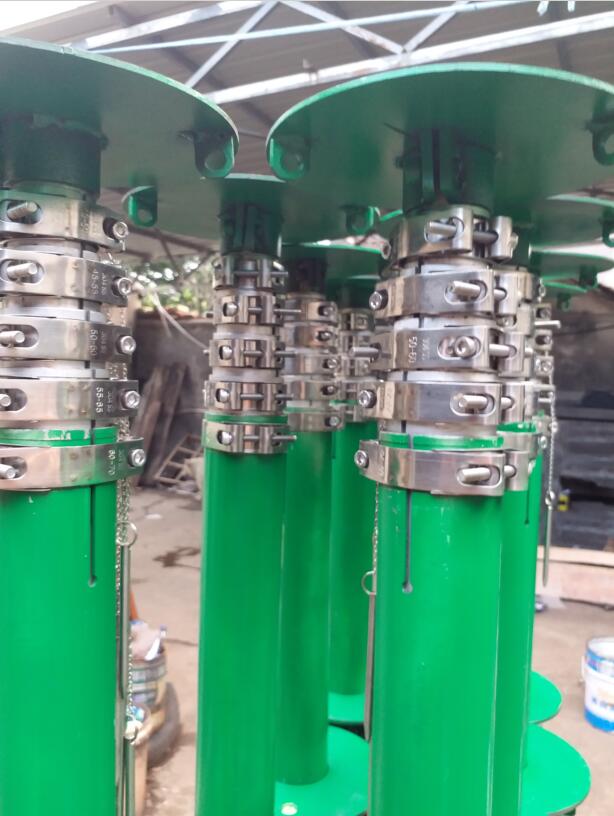

    embeded type

    ground based aerial photography mast & telescopic video camera pole 30ft
