|Place of Origin:||China|
|Name:||TCT saw blade for cutting large diameter ERW pipe and seamless steel pipe|
|Tooth pitch:||Laser cut|
|Surface treatment:||Oiled or painted|
|Function:||for cutting steel pipe|
|Diameter:||280mm up to 1825mm|
|Plate thickness:||3mm to 9mm|
|Kerf:||4.5mm to 10.5mm|
|Teeth number:||60 to 230|

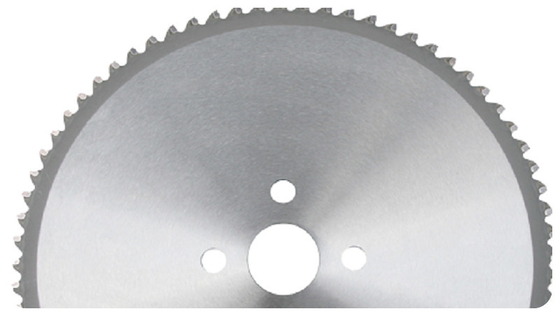

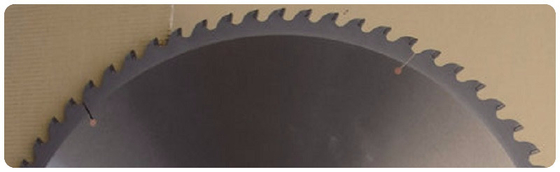

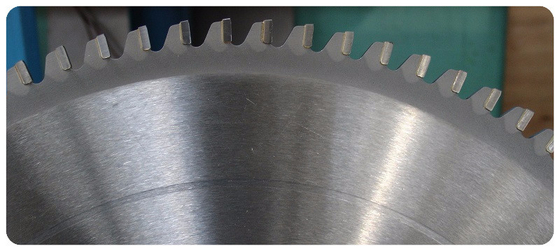

TCT saw blade for cutting large diameter ERW pipe and seamless steel pipe
This type of TCT Circular Saw Blades are are specially designed as steel pipes cutting blades. The blades are applied in seamless steel pipe plant to cut various hot-rolled seamless pipes after cooling and straightening. Several parallel pipes can be cut at one time which increases the efficiency and quality. The blade also can be used to cut cast iron and non-ferrous metals like aluminium, cooper, brass etc…
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 60mm, 80mm, 100mm, 150mm, etc…
Teeth number could be adjusted upon request.
Teeth type: FTWS
Size and specifications:
|Diameter (mm)||Diameter (inch)||Kerf (mm)||Body Thickness (mm)||Teeth number|
Remark: Other special izes and specification can be tailor-made for our clients.
There are four basic blade types, determined by the shape, or grind, of their teeth. They are flat top grind (FTG), alternate top bevel (ATB), combination (ATBR), and triple-chip grind (TCG) [Figure 1 and Photo A].
FTG blades have teeth whose top edges are square to the saw plate. Also called rakers, these teeth attack the wood much like a chisel chopping out the ends of a mortise. They’re fast cutting and durable, but don’t produce a clean surface. They’re designed to rip, sawing perpendicular to the grain.
The teeth on ATB blades are angled across the top edge, with every other tooth “leaning” in the opposite direction. The shape of the tooth causes it to shear the wood fibers cleanly using a slicing motion. The steeper the bevel angle, the cleaner the teeth cut, but the quicker they dull (Figure 2). Most 40-tooth ATB blades are marketed as “all-purpose” blades.
Combination blades consist of 50 teeth arranged in sets of five, with four ATB teeth followed by a raker tooth (thus the ATBR designation.) The ATB teeth are designed to crosscut cleanly while the raker teeth aid in ripping. Combination blades are also considered “all-purpose” blades.
The teeth on a TCG blade alternate between a raker tooth and a chamfered tooth. The chamfered tooth roughs out the cut, while the following FTG tooth cleans it up. This tooth configuration is meant for sawing dense materials: plastic laminate, solid surface materials like Corian, and non-ferrous metals like brass and aluminum. Pointy ATB teeth would blunt quickly from this stuff.
