    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR003B
    Name: TCT Circular Saw Blades
    Carbide material: YG8
    Welding: Auto-machine weld
    Tooth pitch: Laser cut
    Surface treatment: Oiled or painted
    Color: Natural
    Feature: Carbide Tipped
    Function: Wood working
    Diameter: 125mm to 750mm
    Plate Thickness: 1.6mm to 3.6mm
    Kerf: 2.4mm to 4.6mm
    Body material: 65Mn
    Contact Now
    Detailed Product Description

    TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth | anti-kickback | Laser cut expansion slot

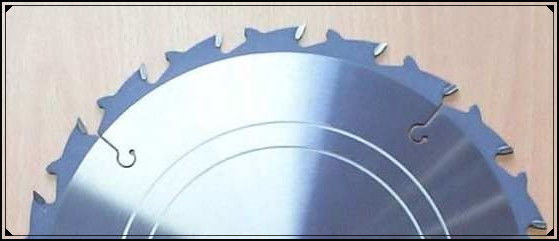

    Diameter from 125mm up to 750mm,ATB or FT teeth with or without anti-kickback,  punched or laser cut expansion slot

    For ripping and cross cutting softwood, hardwood, plywood, chip-board, multi-board, panels with a good finish edge.  Use for sizing saws, table ws, cross cut saws.

    TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slotTCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slot

    Quality: for indutrial and professional market

    Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.

    Teeth number could be adjusted upon request.

    Teeth type:  ATB, FT



    TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slot

    Size and specifications:

    Diameter (mm) Kerf (mm) Body Thickness (mm) Teeth number
    125 2.4/2.6 1.4/1.6 20
    130 2.4/2.6 1.4/1.6 20
    140 2.5/2.6 1.5/1.6 20
    150 2.5/2.6 1.5/1.6 24
    160 2.5/2.6 1.5/1.6 24
    165 2.5/2.6 1.5/1.6 28
    180 2.6/2.8 1.6/1.8 24,30
    184 2.6/2.8 1.6/1.8 24,30
    190 2.6/2.8 1.6/1.8 24,30,32,36
    200 2.8 1.8 24,30,32,36
    210 2.8 1.8 32,36
    230 2.8 1.8 36,40
    235 2.8 1.8 36,40
    250 3.0 2.0 30,42
    255 3.0 2.0 30,42
    260 3.0 2.0 30,42
    270 3.0 2.0 30,42
    300 3.0 2.0 36,42,48
    315 3.0/3.2 2.0/2.2 36,42,48
    335 3.2 2.2 36,42,48
    350 3.2 2.2 40,48,54,56,60
    380 3.5 2.5 48,54,64
    400 3.5 2.5 54,60,64
    450 3.5 2.5 60,66,72,80
    500 3.8/3.5 2.8/2.5 66,72,80,100
    550 3.8 2.8 72,80,90,100,110
    600 4.0 3.0 80,90,100,120
    650 4.0 3.0 80,90,100,120
    700 4.2 3.2 80,90,100,120
    750 4.6/4.2 3.6/3.2 80,90,100,120

    Remark:  Other special izes and specification can be tailor-made for our clients.

    TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slot

    TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slotTCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slotTCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slot

    Advantage of our products:

    • Laser-cut saw plate made from saw blade specific alloy and flattened to ensure that the blade runs straight and true.
    • Superior grade Tungsten Carbide tips specifically suited for your application including sub micron grain C-4 when appropriate for extended edge life. Large carbide tips mean more sharpening points per blade.
    • Robotic CNC controlled brazing and grinding machinery produce consistent and precise tolerances.
    • Thousands of blades in stock as well as custom-made blades.
    • Quality blades provide for greater productivity without downtime.

    TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slot TCT Circular Saw Blades | Cutting & Blades | MBS Hardware | ATB teeth  |  anti-kickback  | Laser cut expansion slot





    Tensioning

    To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.



    Control of cutting geometry

    All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
