power tool accessory Multi Rip TCT Circular Saw Blades with tungsten carbide tipped wipers slots from 250mm up to 400mm

power tool accessory Multi Rip TCT Circular Saw Blades with tungsten carbide tipped wipers slots from 250mm up to 400mm

    • power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm
    • power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm
    • power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm
    • power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm
  • power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm

    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR016
    Name: Multi Rip TCT Circular Saw Blades
    Carbide material: YG8
    Welding: Auto-machine weld
    Tooth pitch: Laser cut
    Surface treatment: Oiled or painted
    Color: Natural
    Feauter: with wiper slots
    Feature: Multi rip
    Body material: 65Mn

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Contact Now
    Detailed Product Description

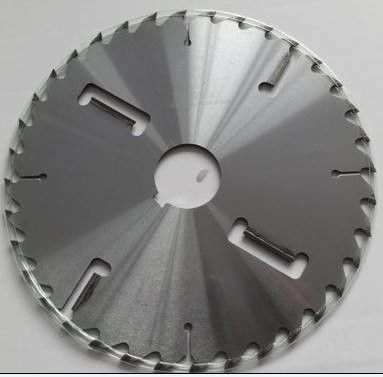

    power tool accessory Multi Rip TCT Circular Saw Blades with tungsten carbide tipped wipers slots from 250mm up to 400mm

    This type of  TCT Circular Saw Blades are specially designed as Multi rip cutting blades. The blades are indicated for multiple cuts with single shaft or twin shaft machines of humid and nervy woods. The wiper-slots inserted in the body of the blade prevent the closure of the cut.

    power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm

    Quality: for indutrial and professional market

    Bore: all sizes and upon request, including 60mm, 70mm, 80mm, etc…

    Teeth number could be adjusted upon request.

    Teeth type: ATB, FT

    power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm

    Size and specifications:

    Diameter (mm) Kerf Max. cutting depth(mm) Teeth Number
    Teeth + Wiper
    250 2.5/1.6 40.0 20+4
    250 3.2/2.2 50.0 20+4
    250 3.2/2.2 50.0 18+2
    250 3.4/2.2 50.0 16+2
    250 3.4/2.2 50.0 24+2
    280 2.5/1.6 50.0 20+4
    280 2.5/1.6 50.0 24+4
    280 3.2/2.2 60.0 20+4
    280 3.2/2.2 60.0 24+4
    280 3.2/2.2 60.0 20+2
    280 3.4/2.2 60.0 16+2
    280 3.4/2.2 60.0 18+2
    300 2.5/1.6 60.0 20+4
    300 2.5/1.6 60.0 24+4
    300 3.2/2.2 70.0 20+4
    300 3.2/2.2 70.0 24+4
    300 3.2/2.2 70.0 20+2
    300 3.6/2.4 80.0 18+2
    300 3.6/2.4 80.0 20+2
    300 3.6/2.4 80.0 24+2
    320 3.2/2.2 70.0 24+4
    320 3.4/2.4 70.0 20+4
    350 3.0/2.0 70.0 24+4
    350 3.0/2.0 70.0 28+4
    350 3.5/2.5 90.0 24+4
    350 3.5/2.5 90.0 28+4
    350 4.2/2.8 90.0 24+4
    380 4.0/2.8 110.0 24+4
    380 4.0/2.8 110.0 28+4
    380 4.4/3.0 110.0 24+4
    400 4.0/2.8 120.0 28+4
    400 4.0/2.8 120.0 32+4
    400 4.4/3.0 120.0 28+4

    Remark:  Other special izes and specification can be tailor-made for our clients.

    power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mmpower tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mmpower tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mmpower tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm



    Advantage of our products:

    • Laser-cut saw plate made from saw blade specific alloy and flattened to ensure that the blade runs straight and true.
    • Superior grade Tungsten Carbide tips specifically suited for your application including sub micron grain C-4 when appropriate for extended edge life. Large carbide tips mean more sharpening points per blade.
    • Robotic CNC controlled brazing and grinding machinery produce consistent and precise tolerances.
    • Thousands of blades in stock as well as custom-made blades.
    • Quality blades provide for greater productivity without downtime.

    power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm power tool accessory Multi Rip TCT Circular Saw Blades with  tungsten carbide tipped wipers slots from 250mm up to 400mm





    Tensioning

    To achieve a good cutting result the saw blades must be tensioned to the specific rotation speed and area of use. Tensioning is made by rolling circular tracks into the saw body causing tensions in the steel.



    Control of cutting geometry

    All final checks are carried out on our CNC controlled measuring machine. Using four cameras giving the highest accuracy of imaging, the machine measures the total cutting geometry of the teeth and the centralization of the tip. Also the machine measures the brazing of the tips and records any deviation which is then passed back to the brazing robots for any adjustments.
