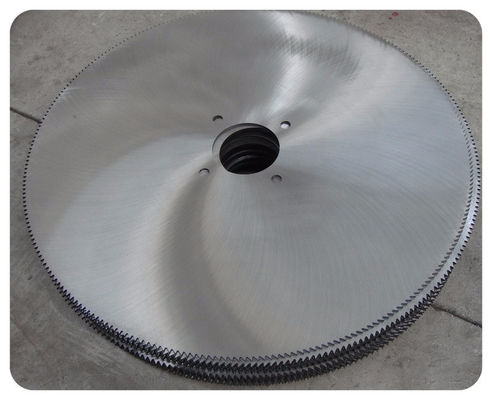

HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills

HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills

    • HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills
    • HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills
    • HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills
  • HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills

    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR067-4
    Name: HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills
    Tooth pitch: Laser cut or punched
    Teeth: Sharpened
    Color: Natural
    Function: fo rmetal cutting
    Feature: without carbide tip
    Surface treatment: Oiled or painted
    Body material: 65Mn
    Size: 300mm to 1200mm
    Teeth number: 160 to 350
    Plate thickness: 5mm to 8mm
    Bore: 32mm to 120mm
    Contact Now
    Detailed Product Description

    HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills



    Silvery CrN (Chrome Niride) is a special PVD coating with high function of wear-resistance, anti-corrosion, and oxidation-resistance. Strongly recomended for cutting copper and titanium, also can be used for cutting brass, bronze, nd other light alloys.



    Quality: for indutrial and professional market



    Bore: all sizes and upon request, including 25.4mm, 32mm, 40mm, 50mm, 90mm, ect.



    Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.



    Size and specifications:Remark: Other special izes and specification can be tailor-made for our clients.

    Diameter (mm) Bore (mm) Plate thickness (mm) Teeth number
    175 32 1.2/1.5/2.0 180,140,110,90,70
    200 25.4/32 1.0/1.2/1.5/1.6/1.8 180,140,110,90,80
    210 32 2.0 210,160,130,110,80
    225 32/40 1.2/1.5/1.6/1.8/1.9/2.0/2.5 220,180,140,120,90
    250 25.4/32/40 1.0/1.2/1.5/1.6/2.0/2.5/3.0 250,200,160,128,110,000
    275 25.4/32/40 1.6/2.0/2.5/3.0 280,220,180,140,120,000
    300 32/38/40 1.6/2.0/2.5/3.0 300,220,180,160,140,000
    315 32/40 1.6/2.0/2.5/3.0/3.5 300,240,200,160,140,000
    325 32/40 2.0/2.5/3.0 320/250/200/170/128
    350 32/40/50 1.8/2.0/2.5/3.0/3.5 350/280/220/180/160/140
    370 32/40/50 2.5/3.0/3.5 280/220/190/160/140
    400 40/50 2.5/3.0/3.5/4.0 310/250/200/160
    425 40/50 2.5/3.0/3/5/4.0 320/260/220/160
    450 40/50 2.5/3.0/3.5/4.0 350/280/230/180
    500 40/50 3.0/3.5/4.0/5.0 310/260/200
    525 50 3.5/4.0 410/330/270/210
    550 50/90 4.0/5.0 440/340/280/220


    HSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile MillsHSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile MillsHSS saw blade - Circular saw blad - MBS Hardware - ø 100 - 1200 mm - For Steel Pipe & Profile Mills





    Cold Saw Blades

    Cold Saw Blades are designed to cut ferrous and non-ferrous metals. Cold Saw blades are made from M2 HSS steel and M-35 (5% cobalt) for stainless and tool steels. Our cold saw blades are heat treated to 64-65 HRc and triple tempered and press quenched to ensure flatness. These blades are specifically suited for use on manual, semi-automatic and fully-automatic cold saws. Cold saw blades operate at slow speeds typically 10-50 RPM when cutting ferrous metal but can run faster when cutting non ferrous metal. Contact our highly experienced sales department for recommendations on cutting speeds and the proper tooth count. Flood coolant or at the least a mist spray is highly recommended for optimal cut quality and blade life. When ordering please specify the type of material being cut so the correct tooth geometry is furnished for your job. Cold saw blades are commonly listed in millimeters (converter tool). If you do not see your size, contact us for availability.

    Cold Saw Blades are available with PVD coatings as well (scroll down to see images). PVD coatings increase the surface hardness and allow for increased speeds and feeds. The proper PVD coating is determined by the material being cut, the saw being used and the method of coolant application eg. flood, mist or no coolant. Contact our sales department for technical recommendation when considering PVD coatings.
