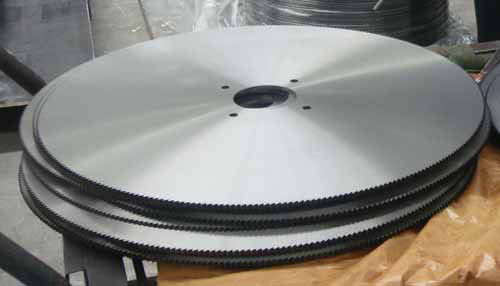

Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288

Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288

    • Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288
    • Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288
    • Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288
    • Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288
  • Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288

    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR055-900-002
    Name: Friction saw blades
    Tooth pitch: Laser cut or punched
    Teeth: Sharpened
    Color: Natural
    Function: for cutting steel pipe
    Feature: without carbide tip
    Surface treatment: Oiled or painted
    Body material: 65Mn
    Size: 900mm
    Teeth number: 288
    Plate thickness: 6.0mm
    Bore: 110mm
    Contact Now
    Detailed Product Description

    Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288



    Mainly used for cutting all kinds of metal thin wall pipe under the normal temperature.

    Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288



    Quality: for indutrial and professional market



    Diameter: 900mm



    Bore: 110mm



    Plate thickness: 6.0mm



    Teeth number: 288



    Silvery CrN (Chrome Niride) is a special PVD coating with high function of wear-resistance, anti-corrosion, and oxidation-resistance. Strongly recomended for cutting copper and titanium, also can be used for cutting brass, bronze, nd other light alloys.



    Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.



    Other sizes and specifications:

    Diameter (mm) Width(B) Bore Diameter(D) Teeth No.(Z)
    350 2.2,2.5,3.0 32 160,180,200,220
    400 3.0,3.5 40 140,160,180,200,216
    430 4.0 80 210
    500 3.5,4.0 65 160,180,200,210
    550 3.5,4.0 70 136,160,180,216
    600 3.5,4.0 80,90,100 180,200,216,268
    650 3.5,4.0 80,90,100 180,200,216,268
    700 4.5,5.0 60,90,100 216,240,300
    750 5.0,5.5 65,70,90 180,248,295,300
    800 5.0,6.0 65,85,90,100 250,260,366
    900 5.0,6.0 110,120 208,238,288,340
    1000 5.5,6.0 120,130 288,48,432
    1050 5.5 110,120 288
    1200 6.0,8.0 120 348

    Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288Friction saw blades for metal cutting Slitting saw MBS Hardware 900mm x 110mm x 6.0mm Z=288

    HSS Saw Blade and Cold Saw Blades



    Cold Saw Blades are designed to cut ferrous and non-ferrous metals. Cold Saw blades are made from M2 HSS steel and M-35 (5% cobalt) for stainless and tool steels. Our cold saw blades are heat treated to 64-65 HRc and triple tempered and press quenched to ensure flatness. These blades are specifically suited for use on manual, semi-automatic and fully-automatic cold saws. Cold saw blades operate at slow speeds typically 10-50 RPM when cutting ferrous metal but can run faster when cutting non ferrous metal. Contact our highly experienced sales department for recommendations on cutting speeds and the proper tooth count. Flood coolant or at the least a mist spray is highly recommended for optimal cut quality and blade life. When ordering please specify the type of material being cut so the correct tooth geometry is furnished for your job. Cold saw blades are commonly listed in millimeters (converter tool). If you do not see your size, contact us for availability.

    Cold Saw Blades are available with PVD coatings as well (scroll down to see images). PVD coatings increase the surface hardness and allow for increased speeds and feeds. The proper PVD coating is determined by the material being cut, the saw being used and the method of coolant application eg. flood, mist or no coolant. Contact our sales department for technical recommendation when considering PVD coatings.
