    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR003
    Name: Carbide Tipped Circular Saw Blades
    Carbide material: YG8
    Welding: Auto-machine weld
    Tooth pitch: Laser cut
    Surface treatment: Oiled or painted
    Color: Natural
    Feature: Carbide Tipped
    Function: Wood working
    Body material: 65Mn
    Contact Now
    Detailed Product Description

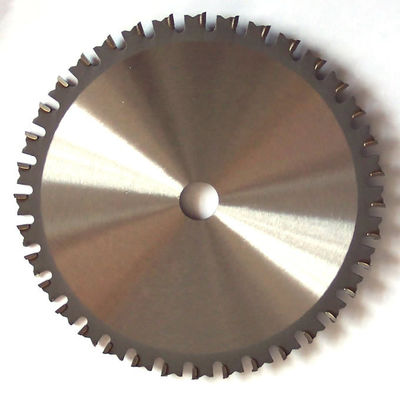

    Carbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teeth

    with or without anti-kickback,  punched or laser cut expansion slot

    For ripping and cross cutting softwood, hardwood, plywood, chip-board, multi-board, panels with a good finish edge.  Use for sizing saws, table ws, cross cut saws.

    Carbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teethCarbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teeth

    Quality: for indutrial and professional market

    Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.

    Teeth number could be adjusted upon request.

    Teeth type:  ATB, FT

    Carbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teeth

    There are four basic blade types, determined by the shape, or grind, of their teeth. They are flat top grind (FTG), alternate top bevel (ATB), combination (ATBR), and triple-chip grind (TCG) [Figure 1 and Photo A].

    FTG blades have teeth whose top edges are square to the saw plate. Also called rakers, these teeth attack the wood much like a chisel chopping out the ends of a mortise. They’re fast cutting and durable, but don’t produce a clean surface. They’re designed to rip, sawing perpendicular to the grain.

    The teeth on ATB blades are angled across the top edge, with every other tooth “leaning” in the opposite direction. The shape of the tooth causes it to shear the wood fibers cleanly using a slicing motion. The steeper the bevel angle, the cleaner the teeth cut, but the quicker they dull (Figure 2). Most 40-tooth ATB blades are marketed as “all-purpose” blades.

    Combination blades consist of 50 teeth arranged in sets of five, with four ATB teeth followed by a raker tooth (thus the ATBR designation.) The ATB teeth are designed to crosscut cleanly while the raker teeth aid in ripping. Combination blades are also considered “all-purpose” blades.

    The teeth on a TCG blade alternate between a raker tooth and a chamfered tooth. The chamfered tooth roughs out the cut, while the following FTG tooth cleans it up. This tooth configuration is meant for sawing dense materials: plastic laminate, solid surface materials like Corian, and non-ferrous metals like brass and aluminum. Pointy ATB teeth would blunt quickly from this stuff.



    Size and specifications:

    Diameter (mm) Kerf (mm) Body Thickness (mm) Teeth number
    125 2.4/2.6 1.4/1.6 20
    130 2.4/2.6 1.4/1.6 20
    140 2.5/2.6 1.5/1.6 20
    150 2.5/2.6 1.5/1.6 24
    160 2.5/2.6 1.5/1.6 24
    165 2.5/2.6 1.5/1.6 28
    180 2.6/2.8 1.6/1.8 24,30
    184 2.6/2.8 1.6/1.8 24,30
    190 2.6/2.8 1.6/1.8 24,30,32,36
    200 2.8 1.8 24,30,32,36
    210 2.8 1.8 32,36
    230 2.8 1.8 36,40
    235 2.8 1.8 36,40
    250 3.0 2.0 30,42
    255 3.0 2.0 30,42
    260 3.0 2.0 30,42
    270 3.0 2.0 30,42
    300 3.0 2.0 36,42,48
    315 3.0/3.2 2.0/2.2 36,42,48
    335 3.2 2.2 36,42,48
    350 3.2 2.2 40,48,54,56,60
    380 3.5 2.5 48,54,64
    400 3.5 2.5 54,60,64
    450 3.5 2.5 60,66,72,80
    500 3.8/3.5 2.8/2.5 66,72,80,100
    550 3.8 2.8 72,80,90,100,110
    600 4.0 3.0 80,90,100,120
    650 4.0 3.0 80,90,100,120
    700 4.2 3.2 80,90,100,120
    750 4.6/4.2 3.6/3.2 80,90,100,120



    Remark:  Other special izes and specification can be tailor-made for our clients.

    Carbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teethCarbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teethCarbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teeth

    Carbide Tipped Circular Saw Blades for wood,general purpose, diameter from 125mm up to 750mm,ATB or FT teeth
