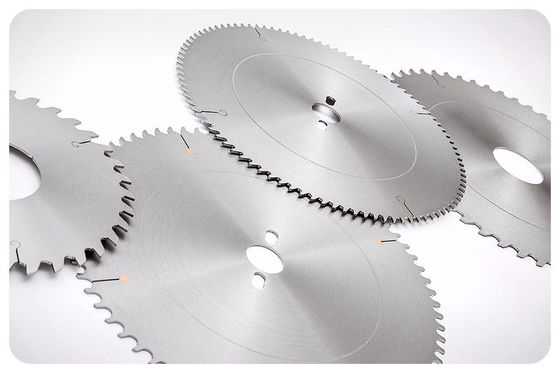

Aço em branco para lâmina de serra TCT- Circular blanks - MBS Hardware - ø 100 - 1200 mm - For Cutting Construction

Aço em branco para lâmina de serra TCT- Circular blanks - MBS Hardware - ø 100 - 1200 mm - For Cutting Construction

    • Aço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting Construction
    • Aço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting Construction
    • Aço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting Construction
  • Aço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting Construction

    Product Details:

    Place of Origin: China
    Brand Name: MBS
    Certification: TUV
    Model Number: LXR045-3
    Name: Cutting & Blades
    Tooth pitch: Laser cut or punched
    Teeth: Sharpened
    Color: Natural
    Function: for wood cutting
    Feature: without carbide tips
    Surface treatment: Oiled or painted
    Body material: 65Mn
    Size: 100mm up to 1200mm
    Teeth Number: 40 up to 160
    Plate thickness: 1mm up to 6.5mm
    Contact Now
    Detailed Product Description

    Aço em branco para lâmina de serra TCT- Circular blanks - MBS Hardware - ø 100 - 1200 mm - For Cutting Construction



    For general, simple, precise cuts in softwood, hardwood, plywood, panels, chipboard, multi-board ect...



    TCT Saw Blanks

    We make 230mm to 1200mm blanks for carbide tipping. Blanks are laser cut with pockets or teeth to customer’s specification. Like our friction and hot saw blades, all carbide saw blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Carbide blanks are often used to cut wood, aluminum, steel, and other nonferrous materials.

    Aço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting Construction

    Quality: for indutrial and professional market



    Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.



    Diameter: 1200mm

    Plate thickness: 5mm, 5.5mm, 6.0m, 6.5mm

    Teeth number: Z=80, 100, 120, 140, 160



    Other sizes and specification are as the following:

    Diameter (mm) Plate Thickness (mm) Teeth Number
    100 1.0 40, 56
    115 1.0 40, 56
    125 1.0 56, 64, 80
    130 1.0 56, 64, 80
    140 1.0 56, 64, 80
    150 1.0 56, 64, 80,90
    156 1.0 56, 64, 80,90
    160 1.0 56, 90, 100, 110
    170 1.0 72, 90, 100, 110
    180 1.2 72, 90, 100, 110
    184 1.2 72, 90, 100, 110
    190 1.2 72, 90, 100, 110
    200 1.2 56, 72, 80, 100
    200 1.4 56, 72, 80, 100
    200 1.6 56, 72, 80, 100
    230 1.4 36, 56, 72, 80
    230 1.6 36, 56, 72, 80
    230 1.8 36, 56, 72, 80
    250 1.2 36, 56, 80, 100, 120
    250 1.4 36, 56, 80, 100, 120
    250 1.6 36, 56, 80, 100, 120
    250 1.8 36, 56, 80, 100, 120
    300 1.6 36, 56, 80, 100, 120
    300 1.8 36, 56, 80, 100, 120
    300 2.0 36, 56, 80, 100, 120
    315 1.6 36, 56, 80, 100, 120
    315 1.8 36, 56, 80, 100, 120
    315 2.0 36, 56, 80, 100, 120
    350 1.8 56, 80, 100, 120, 140
    350 2.0 56, 80, 100, 120, 140
    350 2.2 56, 80, 100, 120, 140
    400 2.0 56, 80, 100, 120, 140
    400 2.2 56, 80, 100, 120, 140
    400 2.5 56, 80, 100, 120, 140
    450 2.2 56, 80, 100, 120, 140
    450 2.5 56, 80, 100, 120, 140
    450 2.8 56, 80, 100, 120, 140
    500 2.2 56, 80, 100, 120, 140
    500 2.5 56, 80, 100, 120, 140
    500 2.8 56, 80, 100, 120, 140
    500 3.0 56, 80, 100, 120, 140
    550 2.5 56, 80, 100, 120, 140
    550 2.8 56, 80, 100, 120, 140
    550 3.0 56, 80, 100, 120, 140
    600 2.5 56, 80, 100, 120, 140
    600 2.8 56, 80, 100, 120, 140
    600 3.0 56, 80, 100, 120, 140
    600 3.2 56, 80, 100, 120, 140
    700 2.8 56, 80, 100, 120, 140
    700 3.0 56, 80, 100, 120, 140
    700 3.2 56, 80, 100, 120, 140
    750 3.0 56, 80, 100, 120, 140
    750 3.2 56, 80, 100, 120, 140
    750 3.5 56, 80, 100, 120, 140
    800 3.2 56, 80, 100, 120, 140
    800 3.5 56, 80, 100, 120, 140
    800 3.8 56, 80, 100, 120, 140
    800 4.0 56, 80, 100, 120, 140
    900 3.5 56, 80, 100, 120, 140
    900 4.0 56, 80, 100, 120, 140
    900 4.5 56, 80, 100, 120, 140
    1000 4.0 56, 80, 100, 120, 140
    1000 4.5 56, 80, 100, 120, 140
    1000 5.0 56, 80, 100, 120, 140
    1100 4.5 80, 100, 120, 140, 160
    1100 5.0 80, 100, 120, 140, 160
    1100 5.5 80, 100, 120, 140, 160
    1200 5.0 80, 100, 120, 140, 160
    1200 5.5 80, 100, 120, 140, 160
    1200 6.0 80, 100, 120, 140, 160
    1200 6.5 80, 100, 120, 140, 160

    Aço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting ConstructionAço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting ConstructionAço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting ConstructionAço em branco para lâmina de serra TCT- Circular blanks -  MBS Hardware - ø 100 - 1200 mm - For Cutting Construction

    Diamond Core Blanks

    MBS produces 24 to 100 inch blanks for diamond core applications. Blanks are laser cut to customer specification. The outside diameters of these diamond core blanks are concentric to the inside diameter. This means that the outside and inside diameters must be precisionally made to exact measurements. Like our friction and hot saw blades, all diamond core blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Diamond core blanks are often used to cut marble slabs, granite, stone or other masonary type products

    Segmented Blanks

    MBS makes 24 to 60 inch segmented blanks. Blanks are laser cut to customer’s specification. Like our friction and hot saw blades, all segmented blanks are heat treated, Blanchard ground, smithed, and computerized checked for proper tension and run out and balance. Segmented blanks are often used to cut wood, aluminum, and other nonferrous materials.

    Custom Blanks

    MBS will work with your purchasing department or engineers to develop saw blades to custom fit your demanding applications. Disston 100 year history of making saw blades allows us to custom build a precision saw blade to meet your needs
