6-9 m ground based telescopic mast photography sport video mast endzone camera China made

6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made
    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made
    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made
  • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    Product Details:

    Place of Origin: China
    Brand Name: Yonggao
    Model Number: YG005
    material: 6063 aluminum alloy
    color: customized
    Drive: motor
    control: wireless control
    pan-head: two-axial movement
    power: self attached battery
    Contact Now
    Detailed Product Description

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    YG series endzone camera system that is designed for athletic programs of all sizes. This system is easy to transport, quick to set-up, and of all the endzone video systems on the market, our 30' -9meter mast system is the only manufactured in China, with low price and good quality

    Features

    § Both electrical pantilt Camera Controls and manual camera control

    E-remore pan tilt may not suitable to rush movements, our manual control pan tilt, suitable to any kind of requests.

    § 30 ft. Extended Height

    § Whole life hardware Warranty

    § Easy Set-up and Operation

    § Everything Included (no camera)

    § 10" Monitor

    § Choice of Tower Color

    § Anti 80 miles wind (ground nut and guyed wire in rush climate)

    §

    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made
    • Advantages

    1. The Telescopic Camera mast has a minimum height of 170cm and the maximum height can be up to 18m.

    • 2. Has tripod support and trolley base, easy to move and transport
    • 3. mast has two types for selection, pneumatic cyliner and hand pull-up
    • 4. top mounted quick release camara plate
    • 5. operate plate to control the camera
    • 6. LCD monitor screen and extension cable
    • 7. Transproting bag
    • 8.one 12V-10Ah battaery is equiped with a converter to 7.2V, can supply to drive motors and Camera/DV screen
    • 9. Rain covers

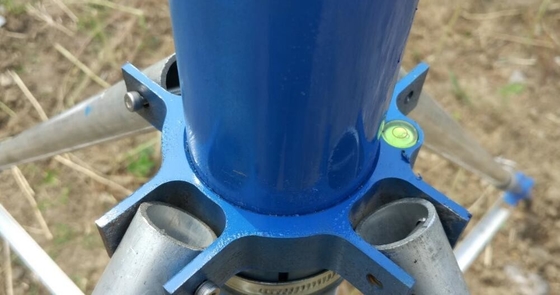

    • 10. water level
    •
    • Specifications:
    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made
    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made
    • 6-9 m ground based telescopic mast photography sport video mast endzone camera China made

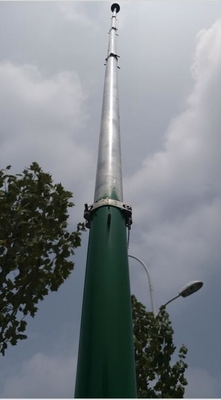

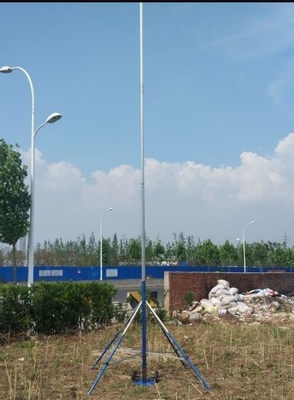

    9m high aluminium telescopic push-up mast
    fully extracted length (height) 9m
    transportation length 1.8m
    weight 15kg
    bottom diameter 60mm
    top diameter 40mm
    wall thickness 2mm
    number of section 5
    mast material high quality anodized aluminium
    strong interlock clamps made from stainless steel
    Tripod 4 legs



    6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made



    pantilt control type:

    1. remore control, electrial motor drive

    2. manual control

    turn the mast body around like Submarines periscope,

    turn the camera up and down with a string and gears.



    Pan tilt Screen HDMI wire

    Electrical Include:

    Pantilt head

    Remoter

    battery

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made



    8 meter

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    Hand control includ

    Pantilt

    Drive string

    Gears

    Handle



    All screen have attached battery If camera has wifi, so no need this wire



    our telescopic mast for selection

    6-9 m ground based telescopic mast photography sport video mast endzone camera China made

    Features

    • 3 to 15m full extended models
    • Car suitable transport length
    • Hand push up
    • Max 80mm Diameter Bottom Section -
    • 25mm Diameter Top Section
    • Aluminum 6063 tube 2mm thickness
    • Stainless steel clamp fast fasten, without tool
    • COMMERCIAL QUALITY


    Usually these masts require a flat or socket wrench, with the quick release clamps you can raise and lower the masts without any tools.
