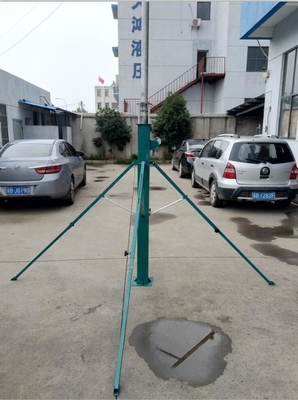

3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast

3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast

    • 3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast
    • 3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast
    • 3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast
  • 3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast

    Product Details:

    Place of Origin: China Jiangsu
    Brand Name: Yonggao
    Model Number: YG-G006
    material: 6063 alu alloy
    surface: anodized or painted
    tripod: adjustable 3/4 legs
    wheel: optional
    erect: by hand
    guide line: optional
    Contact Now
    Detailed Product Description

    3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast



    For WiFi, Portable Antennas, Elevated Photos



    Ideal for:
    Emergency Response Antenna Systems, Restricted Space Antennas - Prepping Systems
    Elevated Photography - Weather Instruments - WiFi Site Surveying - End Zone Cameras


    Our best-sellingpush-up pole is made of the highest quality aluminum and built to last. Extremely portable but ready to provide years of permanent service too!

    light weight for easy carrying and perfect for temporarily supporting antennas. More versatile than fiberglass or plastic masts and particularly useful when a lightweight metal mast is required.Tube wall thickness is2mm and heavy-duty thumb nut compression clamps make for quick and easy adjustment of individual sections.

    You can raise any section by any amount to get the exact height and rigidness you need! When securely mounted at the base and with most lightweight items attached, guying is not usually necessary. However, guying is always recommended.

    The most frequent question we are asked is "How much weight will this mast support?" The answer is... It will depend entirely on what you mount on it, how it is mounted at the base, if guys are used and how you plan to extend the mast with the load attached. Our own personal, unscientific experience has shown 5 to 10 pounds of vertical weight is reasonable. Keep in mind, this is vertical weight and wind and/or off-center mountings may cause the mast to sway or flex. Once again, guying and a good base support is highly recommended.

    Used in conjunction with our matching mounting brackets, this mast (portable light weight) is IDEAL for permanent mounting on RV's, buildings or posts! The ability to raise and lower it quickly means this mast can stay mounted all the time. For portable applications, we have matching tripods and drive-on tire mount options available too. See our other listings for more info on these items!

    Spare parts are available but rarely needed!





    3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast





    3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast





    Accessories:
    Pulling cord box with handle bars 3 units
    Ground anchor 3 pieces
    Handle lifting bar 2 pieces
    20cm 304 stainless steel stakes 6 pieces

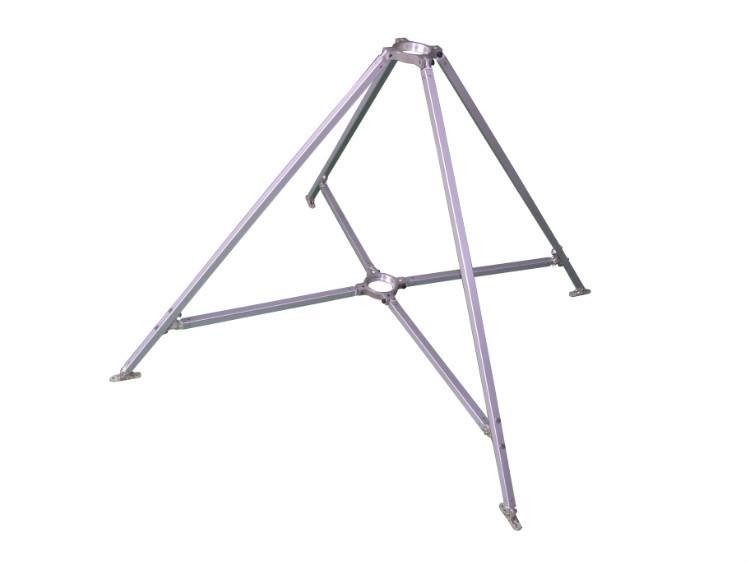

    Tripod 1 unit




    ist

    3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast



    Features

    • 3 to 15m full extended models
    • Car suitable transport length
    • Hand push up
    • Max 80mm Diameter Bottom Section -
    • 25mm Diameter Top Section
    • Aluminum 6063 tube 2mm thickness

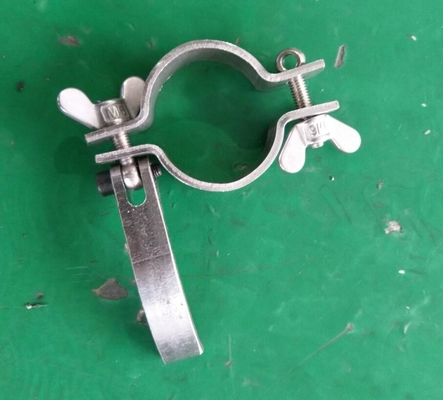

    • Stainless steel clamp fast fasten, without tool
    • COMMERCIAL QUALITY


    Usually these masts require a flat or socket wrench, with the quick release clamps you can raise and lower the masts without any tools.

    Even with limited space these quick clamps can be easily used, because the lever can be adjusted at any position. Just pull out and release the lever, the strong spring latches the lever at the desired position.

    3/4 legs tripod trolley based heavy duty 2mm wall 6063 aluminum tube 6-18m telescopic mast
